Junction Boxes For Pt100 M

Brand: BARTEC

Category: EX PROOF HEAT TRACING EQUIPMENT

The polyester junction boxes allow one or more two-wire or three-wire Pt100 M resistance thermometers to be connected to the signal line. The enclosures have the appropriate terminals and the required cable glands.

Junction Boxes For Pt100 M

The polyester junction boxes allow one or more two-wire or three-wire Pt100 M resistance thermometers to be connected to the signal line. The enclosures have the appropriate terminals and the required cable glands. Aluminium junction boxes are available upon request.

Application Areas:

• Industrial furnaces and dryers
• Chemical processes
• Food processing
• Pharmaceutical production
• Power plants
• Metal processing
• Automotive industry
• Aerospace industry
• Nuclear power plants
• Extruder Heating
• Hot press applications
• High temperature pipelines
• Tank heating
• Steam lines
• Heat treatment furnaces
• High temperature reactors
• All industrial applications requiring Pt100 sensor connections.

Mini Heater

Brand: BARTEC

Category: CONTROL PANELS AND CONTROL ELEMENTS

Function The Mini-heater can be used without a temperature limiter in hazardous areas providing the installation instructions are carefully adhered to. Attaching the Mini-heater to a metal body can reduce the surface temperature.

• Small, compact structure
• No temperature control necessary
• Available in different voltages
• Easy wiring

The Mini-heater protects from frost and prevents the formation of condensation water inside enclosures and small electrical control panels. The explosion-proof version can be mounted in Ex-enclosures according to EN 60079-7.

Installation instructions for use in Ex areas The temperature class can be specified:

• via a routine thermal test and approval by an authorised Ex inspector
• via a prototype test, e.g. together with other equipment based on presentation by a recognised testing agency

Installation exclusively in Ex enclosures according to EN 60079-7.

Structure A heating resistor is flameproof encapsulated in an anodised aluminium enclosure. The terminal leads integrated on both sides make the device a ready-to-connect heater. The heater is mounted by means of two fixing holes of ∅ 3.2 mm. A heater of similar dimensions and power output is available for use in safe areas. This version is supplied without the earth connection.

Function The Mini-heater can be used without a temperature limiter in hazardous areas providing the installation instructions are carefully adhered to. Attaching the Mini-heater to a metal body can reduce the surface temperature.

HCS Radiator

Brand: BARTEC

Category: INSTRUMENT PROTECTION BOXES AND PRODUCTS

BARTEC compact radiators are used as anti-freezing and anticondensate heaters in potentially explosive areas.

HCS Instrument Box Heater Panel

• High heating capacity
• Integrated antifreezing protection device in the connection cable
• Large, black anodized convector surface

BARTEC compact radiators are used as anti-freezing and anticondensate heaters in potentially explosive areas. Their use guarantees maximum operating safety, since temperature fluctuations are effectively prevented or the required minimum temperatures are maintained. They reliably ensure that no malfunctioning through leakage current in electrical components, or other disturbances through corrosion formation on mechanical installation parts, can occur. The radiators are ready for connection and they are maintenance-free. Places of use include switch and control cabinets, transmitter protective boxes, measuring equipment, analytical cabinets for sample preparation etc..

Function The thermostat located in the connection cable keeps the inside temperature in the required range and reliably prevents overshooting the permissible ambient temperature of the heater. In order to prevent accumulation of heat the specified fitting distances must be observed. Do not cover the fins, in order that free convection is not hindered. For applications involving higher holding temperatures, please contact us.

Construction, The radiators are fitted with a constant ohmic resistance. Through the special construction of the aluminium profile a chimney effect is produced which gives a uniform temperature distribution in the interior of enclosures and cabinets. In case of overheating, the heaters are permanently isolated from the mains supply, since the heat source is coupled with a temperature safety fuse.

Application Areas:

• Residential heating systems
• Office heating systems
• School and hospital heating systems
• Industrial facility heating systems
• Greenhouse heating systems
• Pool heating systems
• Bathroom heating systems
• Extruder Heating (liquid cooled)
• Hot press applications (liquid cooled)
• Machine cooling systems
• Electronic equipment cooling systems
• Process cooling systems.

HCM Radiator

Brand: BARTEC

Category: INSTRUMENT PROTECTION BOXES AND PRODUCTS

BARTEC compact radiators are used as anti-freezing and anticondensate heaters in potentially explosive areas.

HCM Instrument Box Heater Panel

• High heating capacity
• Integrated antifreezing protection device in the connection cable
• Large, black anodized convector surface

BARTEC compact radiators are used as anti-freezing and anticondensate heaters in potentially explosive areas. Their use guarantees maximum operating safety, since temperature fluctuations are effectively prevented or the required minimum temperatures are maintained. They reliably ensure that no malfunctioning through leakage current in electrical components, or other disturbances through corrosion formation on mechanical installation parts, can occur. The radiators are ready for connection and they are maintenance-free. Places of use include switch and control cabinets, transmitter protective boxes, measuring equipment, analytical cabinets for sample preparation etc.

Function The thermostat located in the connection cable keeps the inside temperature in the required range and reliably prevents overshooting the permissible ambient temperature of the heater. In order to prevent accumulation of heat the specified fitting distances must be observed. Do not cover the fins, in order that free convection is not hindered. For applications involving higher holding temperatures, please contact us.

Construction The radiators are fitted with a constant ohmic resistance. Through the special construction of the aluminium profile a chimney effect is produced which gives a uniform temperature distribution in the interior of enclosures and cabinets. In case of overheating, the heaters are permanently isolated from the mains supply, since the heat source is coupled with a temperature safety fuse.

Application Areas:

• Industrial facilities
• Large warehouses and workshops
• Gyms and event centers
• Airports and train stations
• Greenhouses and agricultural facilities
• Animal shelters
• Extruder Heating (high capacity)
• Hot press applications (high capacity)
• Large volume liquid heating and cooling
• Process heating and cooling
• Machine cooling systems (high capacity)
• HVAC systems (high capacity)

HCL Radiator

Brand: BARTEC

Category: INSTRUMENT PROTECTION BOXES AND PRODUCTS

BARTEC compact radiators are used as anti-freezing and anticondensate heaters in potentially explosive areas.

HCL Instrument Box Heater Panel

• High heating capacity
• Integrated antifreezing protection device in the connection cable
• Large, black anodized convector surface

BARTEC compact radiators are used as anti-freezing and anticondensate heaters in potentially explosive areas. Their use guarantees maximum operating safety, since temperature fluctuations are effectively prevented or the required minimum temperatures are maintained. They reliably ensure that no malfunctioning through leakage current in electrical components, or other disturbances through corrosion formation on mechanical installation parts, can occur. The radiators are ready for connection and they are maintenance-free. Places of use include switch and control cabinets, transmitter protective boxes, measuring equipment, analytical cabinets for sample preparation etc..

Construction The radiators are fitted with a constant ohmic resistance. Through the special construction of the aluminium profile a chimney effect is produced which gives a uniform temperature distribution in the interior of enclosures and cabinets. In case of overheating, the heaters are permanently isolated from the mains supply, since the heat source is coupled with a temperature safety fuse.

Function The thermostat located in the connection cable keeps the inside temperature in the required range and reliably prevents overshooting the permissible ambient temperature of the heater. In order to prevent accumulation of heat the specified fitting distances must be observed. Do not cover the fins, in order that free convection is not hindered. For applications involving higher holding temperatures, please contact us.

Application Areas:

• Chemical processes
• Laboratories
• Pharmaceutical production
• Food processing
• High temperature furnaces
• Heat treatment plants
• Steam lines
• Extruder Heating (in chemical environments)
• Hot press applications (in chemical environments)
• Corrosive environments
• Environments with aggressive chemicals
• High temperature reactors
• High temperature valves
• High temperature sensors

HSF Radiator

Brand: BARTEC

Category: INSTRUMENT PROTECTION BOXES AND PRODUCTS

The extremely flat BARTEC HSF heater plates are mainly used in potentially explosive areas for applications, which require the maintenance of a specific temperature.

HSF Instrument Box Heater Panel

• Self-limiting characteristic
• Random mounting position
• Extremely flat design
• ATEX gas and dust application approval
• Wide rated voltage range
• Large, black, anodized convector surface

The extremely flat BARTEC HSF heater plates are mainly used in potentially explosive areas for applications, which require the maintenance of a specific temperature. The use of these heater plates guarantees a maximum degree of operational safety, as temperature fluctuations can be efficiently avoided and, yet, the required minimum temperatures can be maintained. The heater plates reliably protect electrical installations against function failures due to creepage currents and also offer protection against other failures caused by corrosion formation at mechanical system components. The radiators are ready for connection and they are maintenance-free. The application areas of these heaters comprise switch and control cabinets, transmitter protection boxes, measuring equipment, analyzer cabinets for sample preparation, and many more.

Construction The HSF heater plates are based on a PTC (positive temperature coefficient) heating element. The special design of the aluminum profile facilitates an even temperature distribution in the interior of housings and cabinets. For an optimum free convection, the fins should not be covered.

Function The PTC heating elements increase their electrical resistance as the temperatures rises. A high resistance results in a low heating output. At high temperatures, the heating capacity is reduced to a minimum heating output, which ensures that the limit temperature of the respective temperature class cannot be exceeded. Moreover, these heating elements regulate their resistance in dependence of the voltage. Therefore, the HSF heating plates can be applied in a wide supply voltage range. Should you require further information on the detailed layout of the heating capacity in holding temperature applications, please contact us.

Application Areas:

• Electronic equipment cooling
• LED lighting cooling
• Power electronics cooling
• Motor cooling
• Extruder Heating (air-cooled)
• Hot press applications (air-cooled)
• CNC machines cooling
• Welding machines cooling
• Laser cutting machines cooling
• 3D printers cooling
• Process cooling
• HVAC systems (small scale)
• Laboratory equipment cooling

Heating cable ADPSZV

Brand: CEILHIT

Category: GREENHOUSE FLOOR HEATING CABLES

Floor Heating Cables

Heating cable ADPSZV

Cold Room EHTPxx Heat Tracing Control Panel

Brand: EHT Mühendislik

Category: COLD ROOM FLOOR HEATING CABLES

The EHTP1 is an industrial control panel designed to manage heating cables effectively. It features 10 circuits with spare outputs, providing reliable control for large-scale heat tracing systems. Equipped with Siemens & Schneider electrical components, it includes a touchscreen HMI display and PT100 temperature modules for advanced monitoring and control.

EHTPxx Heat Tracing Control Panel

The EHTP1 Heat Tracing Control Panel is designed to ensure the safe and efficient operation of industrial heating systems. It supports power capacities ranging from 15-40 kW and is suitable for both indoor and outdoor installations.

This panel features 10 independent circuits, each equipped with a leakage current relay, fuse, and contactor for enhanced protection. This ensures independent operation and protection for each circuit, minimizing the risk of electrical failures.

The touchscreen HMI display provides a user-friendly interface, allowing for easy monitoring and control of the heating system. Additionally, PT100 temperature modules enable precise temperature measurement and management.

Built with Siemens & Schneider electrical components, the EHTP1 ensures high reliability and industrial durability. It is ideal for industrial plants, pipelines, storage tanks, and critical heating systems.

Application Areas:

• Industrial Heat Tracing Systems
• Pipeline Heating & Monitoring Systems
• Storage Tanks & Process Equipment Heating
• Snow & Ice Prevention Systems
• Petrochemical & Refinery Plants
• Power & Energy Facilities

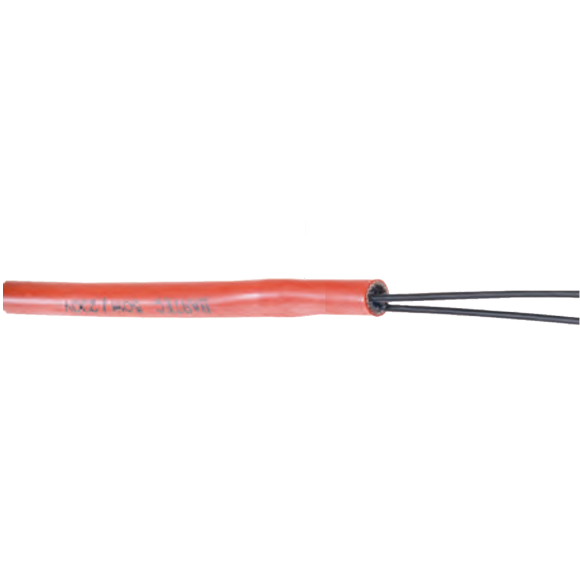

MSH Anti Condensation Motor Heater

Brand: BARTEC

Category: INDUSTRIAL CONTROL PRODUCTS

Flexible heating cable is used as a panel heater for electric motors and generators. The device effectively prevents the formation of condensate even in extreme climatic conditions, providing additional protection against corrosion damage that often causes machine failures.

MSH Anti Condensation Motor Heater

• Easy to connect thanks to its parallel structure
• High watts density power output
• Extremely flexible in a temperature range -50 °C to +180 °C with high di-electric strength

This highly flexible heating cable is used as an anti-condensation heater for electric motors and generators. The device offers added protection against corrosion damage that usually results in machine breakdowns by effectively preventing the formation of condensation water even under extreme climatic conditions

Structure MSH ant-condensation heaters are pre-wired, ready-to-use parallel heating cables with cold lead ends. Consisting of two parallel flexible copper leads with silicone glass-fibre insulation, the heating element of CuNi or NiCr alloy is wound around the cable. The 0.37 m long cold lead ends of FEP insulated stranded copper flex terminate the heating cable. The outer jacket consists of glass-fibre, covered with silicone rubber. Both ends of the heating cable are sealed with silicone rubber

Function The heating cables are integrated directly into the windings, i.e. built around the winding armature. Heat transfer is improved dramatically since the windings during the impregnation process

Special versions on request

• Differing supply voltage
• Differing heating cables
• Special heating cable length

Application Areas:

• Industrial motors
• Generators
• Pump motors
• Compressor motors
• HVAC motors
• Outdoor motors
• Marine motors
• Extruder motors
• Hot press motors
• Motors exposed to moisture
• Motors with frequent start-stop cycles

MSHex Anti Condensation Motor Heater

Brand: BARTEC

Category: INDUSTRIAL CONTROL PRODUCTS

This flexible heating tape is used in explosive atmospheres to heat electric motors and generators at standstill. It provides reliable protection against corrosion damage.

MSHex Anti Condensation Motor Heater

• Silicone-free
• Self-limiting
• Other lengths on request

This flexible heating tape is used in explosive atmospheres to heat electric motors and generators at standstill. It provides reliable protection against corrosion damage and the associated mechanical breakdowns because it effectively prevents condensation from forming, even under extreme conditions. The heater is supplied ready to connect, which is done via an M20 screwed cable connection fed into an Ex e distributor, or is directly clamped to terminals in an Ex room without a screwed connection. As these heating tapes are self-limiting, overheating is prevented, even if they are laid on top of each other. An additional temperature limiter is not required.

Structure of the heating tape

• Copper power conductor wire 1.2 mm2 , nickel-plated
• Self-limiting plastic heating element
• Insulation sleeve made of FEP
• Tin-plated copper braiding
• Protective sleeve made of FEP

Application Areas:

• Industrial motors in hazardous areas
• Generators in hazardous areas
• Pump motors in hazardous areas
• Compressor motors in hazardous areas
• HVAC motors in hazardous areas
• Outdoor motors in hazardous areas
• Marine motors in hazardous areas
• Extruder motors in hazardous areas
• Hot press motors in hazardous areas
• Motors exposed to moisture and in hazardous areas
• Motors with frequent start-stop cycles and in hazardous areas.

Water Detection System PSO PSO Point Sensor

Brand: BARTEC

Category: INDUSTRIAL CONTROL PRODUCTS

The PS0+ point sensor and the PSO point sensor are used to detect electrically non-conductive liquids such as oil, enabling the location of the leak to be detected quickly.

Water Detection System PSO PSO Point Sensor

• Fast detection of the leak location
• Central and decentral voltage supply possible
• Can be combined with SCR and PS

The PS0+ point sensor and the PSO point sensor are used to detect electrically non-conductive liquids such as oil, enabling the location of the leak to be detected quickly. Thanks to the special optics, the PSO+/PSO can operate reliably also when facing metallic surfaces (e.g. oil catch pan made of sheet steel). The integrated load relay can operate actuators, such as a check valve, directly on site. A second change-over contact reports the circuit state to the monitoring electronics. The point sensor can be supplied centrally with DC 24 V via the signal cable. It is similarly possible to provide voltage decentrally by means of a commercially available plug-in power supply unit. With its additional terminal block, the PSO+ can be combined with the SCR and PS sensors as required. The monitoring electronics RLW, RLAnet, RDW03 and RDA01 as well as corresponding accessories (see catalogue) are also part of the BARTEC water detection system.

Application Areas:

• Data centers
• Server rooms
• Telecommunication facilities
• Water pipelines
• Heating and cooling systems
• Ventilation systems
• Basements
• Kitchens and bathrooms
• Laundry rooms
• Extruder Heating (water leak detection)
• Hot press applications (water leak detection)
• Laboratories
• Archive rooms
• Museums and galleries
• Art storage rooms
• Electrical panels
• Generator rooms.

RLW Monitoring Electronics With Locating

Brand: BARTEC

Category: INDUSTRIAL CONTROL PRODUCTS

The RLW monitoring electronics can be easily integrated into the building surveillance. System calibration is not necessary. To safeguard the system, the software is password-protected. RLW can be combined both with the sensor cable and also with the point sensor.

RLW Monitoring Electronics With Locating

• Quick and precise localisation of the leakage location
• Monitoring lengths to 3,000 m
• No system calibration required

The RLW monitoring electronics can be easily integrated into the building surveillance. System calibration is not necessary. To safeguard the system, the software is password-protected. RLW can be combined both with the sensor cable and also with the point sensor. The system status appears as a plain text report. The menu texts in the display are stored in three languages, German, English and French. The front membrane texts are in three languages as standard. The location of the leakage appears in the display quickly and precisely. This ensures that the location of the leakage can be found rapidly and countermeasures introduced immediately. The max. monitoring length is 3,000 m and can be displayed in metres or feet. For each measuring channel up to 1,500 m of sensor cable can be connected. The monitoring length can be divided into 50 zones per measuring channel.

Application Areas:

• Freeze protection of pipelines and tanks
• Control of heating cables
• Cold room heating
• Floor heating
• Industrial process heating
• HVAC systems
• Extruder Heating
• Hot press applications
• Oil and gas pipelines
• Chemical plants
• Power plants
• Railway de-icing systems
• Airport runway de-icing systems
• Bridge and road de-icing systems.

RLAnet Monitoring Unit

Brand: BARTEC

Category: INDUSTRIAL CONTROL PRODUCTS

The monitoring unit RLAnet is a component of the BARTEC Water leakage detection system. It is operating with the sensor cable SCR and/or the point sensor PS. The system detects minor liquid leakages fast and reliable.

RLAnet Monitoring Unit

• Quick and precise localization of the leakage location
• Modbus RTU integration into the building surveillance
• Can be combined with sensor and point sensor

The monitoring unit RLAnet is a component of the BARTEC Water leakage detection system. It is operating with the sensor cable SCR and/or the point sensor PS. Further components of the BARTEC Water leakage detection system are the monitoring units RLW, RDW 03 and RDA 01, also the accessories. The system detects minor liquid leakages fast and reliable. An optical and acoustic signal arises. Simultaneously the potential-free contact switches. This can be used for signalling to PLC or to a building control unit. The leakage is being localized exact by 1 meter and get visualized on the 4-digit display. Thus a leakage will be found by a service person quick and true.

Visualization The service-software (for WINDOWS-PC) calls the system status via RS485 in real-time. The data is available in MODBUS RTU protocol. Up to 250 MODBUS addresses will be handled. The typical application parametrization will also be managed by using this service-software.

Download the service software and the extended manual below: www.bartec.de

Application Areas:

• Freeze protection of pipelines and tanks
• Control of heating cables
• Cold room heating
• Floor heating
• Industrial process heating
• HVAC systems
• Extruder Heating
• Hot press applications
• Oil and gas pipelines
• Chemical plants
• Power plants
• Railway de-icing systems
• Airport runway de-icing systems
• Bridge and road de-icing systems
• All heating cable applications requiring remote monitoring and control.

RDW 03 Monitoring Electronics Without Locating

Brand: BARTEC

Category: INDUSTRIAL CONTROL PRODUCTS

The RDW 03 monitoring electronics can be easily integrated into the building surveillance.The system detects even small liquid leakages quickly and reliably.

RDW 03 Monitoring Electronics Without Locating

• Rapid detection of leakages
• No system calibration required
• Can be combined with sensor cable and point sensor

The RDW 03 monitoring electronics can be easily integrated into the building surveillance.The system detects even small liquid leakages quickly and reliably. There is an optical and acoustic alarm signal. At the same time floating contacts are set for signals to the building services management and control tasks. The max. monitoring length is 1,000 m.

Application Areas:

• Freeze protection of pipelines and tanks
• Control of heating cables
• Cold room heating
• Floor heating
• Industrial process heating
• HVAC systems
• Extruder Heating
• Hot press applications
• Oil and gas pipelines
• Chemical plants
• Power plants
• Railway de-icing systems
• Airport runway de-icing systems
• Bridge and road de-icing systems
• All heating cable applications requiring fault detection and alarm

RDA 01 Monitoring Electronics

Brand: BARTEC

Category: INDUSTRIAL CONTROL PRODUCTS

The RDA monitoring electronics can be easily integrated into the building surveillance. The system detects quickly and reliably even small quantities of liquid leaks.

RDA 01 Monitoring Electronics

• Rapid detection of leakages
• No system calibration required
• Can be combined with sensor cable and point sensor

The RDA monitoring electronics can be easily integrated into the building surveillance. The system detects quickly and reliably even small quantities of liquid leaks. An optical and acoustic alarm signal is given. At the same time floating contacts are set for signals to the building services management and control tasks. The messages are saved until the reset via a push button or voltage disconnection. If the leak continues, the messages are reset. The max. monitoring length is 1,000 m.

Application Areas:

• Freeze protection of pipelines and tanks (basic monitoring)
• Control of heating cables (basic monitoring)
• Cold room heating (basic monitoring)
• Floor heating (basic monitoring)
• Industrial process heating (basic monitoring)
• HVAC systems (basic monitoring)
• Extruder Heating (basic monitoring)
• Hot press applications (basic monitoring)
• Oil and gas pipelines (basic monitoring)
• Chemical plants (basic monitoring)
• Power plants (basic monitoring)
• Railway de-icing systems (basic monitoring)
• Airport runway de-icing systems (basic monitoring)
• Bridge and road de-icing systems (basic monitoring)
• All heating cable applications requiring basic fault detection and alarm.

Identification Label

Brand: BARTEC

Category: HEAT TRACE – HEATER CABLE TYPES

Identification Label

Identification Label

Application Areas:

• Industrial equipment identification
• Cable and pipe identification
• Inventory management
• Shelf and warehouse labeling
• Office equipment labeling
• Medical equipment labeling
• Laboratory equipment labeling
• Extruder Heating (equipment identification)
• Hot press applications (equipment identification)
• Control panel labeling
• Safety equipment labeling
• Warning and caution labels
• Product labeling
• Package labeling.

Heating Cable ADPSV2 - 33 W/m 230-400 V

Brand: CEILHIT

Category: HAMAM HEATING CABLES

Heating cable : parking ramps, stairs, walkways loading areas, soccer fields, as well as roofs, gutters, pipes, agriculture, cold chambers…

High Power Outdoor Defrost Cable (33W/m)

Prevent both ice formation and snow accumulation. The system works automatically only when needed by monitoring both outdoor temperature and moisture.

• Double core with braided protection screen
• Suitable for outdoor and industrial applications
• UV-resistant
• Available for 230 V and 400 V

Applications:

• Roof and Gutter De-icing (Extreme Snowfall Areas)
• Ramp and Stair De-icing (High Traffic and Steep Areas)
• Pipe Line Freeze Protection (Large Diameter and Uninsulated Pipes)
• Industrial Outdoor Heating (Very Heavy Conditions, Cold Storage Surrounding)
• Airport Runway De-icing

ELSR-N Up To 80°C Self Limiting Parallel Heating Tape ELSR-N

Brand: ELTHERM

Category: SELF-REGULATING HEATING CABLE

Used in the fields of Freeze prevention, Temperature maintenance, Pipelines, Silos, containers, tanks, Chemical and Petrochemical, Marine and offshore, Food Processing Industry, Water and sanitation facilities.

ELSR-N Up To 80°C

Self-regulating heating cable, certified for use in all industrial areas with ATEX certification, safely operates at temperatures of 65°C/80°C and can be cut to the required length.

Self-regulating heating cables, also known as self-adjusting heating cables, automatically regulate power output, ensuring energy efficiency. Available in various models to suit different applications and needs, these cables provide a reliable and safe heating solution.

The versatile self-regulating heating cable ELSR-N is suited for frost protection and temperature maintenance in the low temperature range of industrial applications. Likewise it is approved for use in hazardous areas. The BOT version of this heating cable even withstands aggressive chemicals, oil and fuel and, thanks to this high chemical resistance, stands out for a long lifetime.

Advantages

• Self-regulating
• Four nominal outputs
• Can be cut to length off the roll
• Moisture proof
• UV-resistant
• Approved for use in hazardous areas

Applications:

• Frost protection
• Heat tracing on level indicators
• Chemical & petrochemical industries
• Tank bottom heating of LNG storage tanks
• Pipe heat tracing
• Vessels and tanks
• Automotive
• Food processing industry

ELSR- LS Up To 80°C Self Limiting Parallel Heating Tape ELSR-LS

Brand: ELTHERM

Category: SELF-REGULATING HEATING CABLE

Used in pipe heat monitoring, Freeze protection for industrial applications, Temperature maintenance for pipes and vessels, Chemical and petrochemical industries, Paints and varnishes, Automotive and Food processing industries.

ELSR- LS Up To 80°C Self Limiting Parallel Heating Tape ELSR-LS

Self-regulating heating cable, certified for use in all industrial areas with ATEX certification, safely operates at temperatures of 65°C/80°C and can be cut to the required length.

Self-regulating heating cables, also known as self-adjusting heating cables, automatically regulate power output, ensuring energy efficiency. Available in various models to suit different applications and needs, these cables provide a reliable and efficient heating solution. As the Turkey distributor of globally recognized brands Eltherm and Chromalox, Form Mühendislik offers a wide inventory of self-regulating heating cables with diverse features.

The versatile self-regulating heating cable ELSR-LS is our ‘light’ version for temperatures up to 80 °C. This heating cable is also suited and approved for use in hazardous areas. Since eltherm® self-regulating cables can be cut off the roll to the desired length, the application cable is highly flexible to match our customer’s needs. Its long life span guarantees for the efficient use in many industrial sectors.

Advantages:

• Self-regulating
• Four nominal outputs
• Can be cut to length off the roll
• Moisture proof
• UV-resistant
• Small dimensions

Applications:

• Pipe heat tracing
• Frost protection for industrial applications
• Temperature maintenance for pipes and vessels
• Chemical & petrochemical industries
• Paints & varnishes
• Automotive
• Food processing industry

ELSR-M-AF BF Up To 65°C Self Limiting Parallel Heating Tape ELSR-M-AF BF

Brand: ELTHERM

Category: SELF-REGULATING HEATING CABLE

It is used in heat tracing in pipes, pumps and valves, food processing industry, automotive, heating of pipe bundle cables for water analysis, heat tracing on ships.

ELSR-M-AF BF Up To 65°C Self Limiting Parallel Heating Tape  ELSR-M-AF BF

Self-regulating heating cable, certified for use in structural and lighter industrial areas with ATEX certification, safely operates at temperatures of 65°C/80°C.

Self-regulating heating cables, also known as self-adjusting heating cables, automatically regulate power output, ensuring energy efficiency. Available in various models to suit different applications and needs, these cables provide a reliable and safe heating solution.

The heating cable ELSR-M is very flexible and is used for special applications where installation dimensions are needed to be kept small. It is particularly suited for short heating circuits. This heating cable can be used for frost protection and temperature maintenance up to 65 °C.

Advantages:

• Self-regulating
• Two nominal outputs
• Can be cut to length off the roll
• Moisture proof
• UV-resistant
• Small dimensions

Applications:

• Heat tracing on pipes, pumps and valves
• Food processing industry
• Automotive
• Heating of tube bundle cables for water analysis
• Heat tracing on vessels

ELSR-R Up To 65°C Self Limiting Parallel Heating Tape ELSR-R

Brand: ELTHERM

Category: SELF-REGULATING HEATING CABLE

It is used in the fields of frost prevention, special solutions, doors and seals of cooling rooms, profile heating, boarding bridges.

Cold Room Door Heater

The ‘R’ in the name of our self-regulating heating cable ELSR-R is an abbreviation for ‘round’. This heating cable was specially developed to protect the doors and seals of refrigerating chambers against frost as well as for all applications requiring a round heating cable. It is also often used in cooling water lines of breweries and drinks manufacturers (as frost protection). The maximum exposure temperature is 65 °C

Advantages:

• Round design
• Self-regulating
• Can be cut to length off the roll
• Moisture proof
• UV-resistant
• Perfectly suited for installation with sections thanks to round shape

Applications:

• Frost protection for doors and seals of refrigerating chambers
• Usage in cooling water lines of breweries and drink manufacturers

ELSR-W Up To 100°C Self Limiting Parallel Heating Tape ELSR-W

Brand: ELTHERM

Category: SELF-REGULATING HEATING CABLE

Used in the food processing industry, Heat tracing in oil lines, Drain lines in canteens and large-scale kitchens, Freeze protection for heating lines and installation in hot water supplies to prevent the formation of Legionella.

ELSR-W Up To 100°C Self Limiting Parallel Heating Tape ELSR-W

The self-regulating heating cable ELSR-W (hot water) is used for vessels, pipes, valves and several other applications with processing temperatures between 30 °C and 80 °C approximately (power on) and 100°C (power off). The ELSR-W self-regulating heating cables are frequently used to heat oil and fat lines, for example in the food processing industry. But likewise its use for drainage lines in canteens and (large scale) kitchens makes good sense, avoiding fat and oil deposits by heating. Used for hot water supplies, it serves for frost protection, temperature maintenance and prevention of Legionella formation

Advantages:

• Self-regulating
• Two nominal outputs
• Can be cut to length off the roll
• Moisture proof

Applications:

• Food processing industry
• Heat tracing on fat lines
• Drainage lines in canteens and large-scale kitchens
• Frost protection for heating lines
• Installation on hot water supplies to prevent Legionella formation

ELSR-H Up To 210°C Self Limiting Parallel Heating Tape ELSR-H

Brand: ELTHERM

Category: SELF-REGULATING HEATING CABLE

Used in the chemical and petrochemical industries, oil and gas industry, power plants, old sites, frost protection, water and sanitation services and temperature maintenance in vessels, pipes and valves.

ELSR-H Up To 210°C Self Limiting Parallel Heating Tape ELSR-H

The versatile self-regulating heating cable ELSR-H is for high temperatures up to 210 °C in a large number of industrial applications. It is also suited and approved for use in hazardous areas. The BOT version of this heating cable even withstands aggressive chemicals, oil and fuel and, thanks to this high chemical resistance, stands out for a long life span.

Advantages:

• Up to 120 °C/210 °C
• Self-regulating
• Six nominal outputs
• Can be cut to length off the roll
• Moisture proof
• Resistant to chemicals
• Approved for use in hazardous areas

Applications:

• Chemical & petrochemical industries
• Oil & gas industry
• Power plants
• Ex-areas
• Frost protection
• Water & sanitation utilities
• Temperature maintenance on vessels, pipes & valves

ELSR Ramp Self Limiting Parallel Heating

Brand: ELTHERM

Category: SELF-REGULATING HEATING CABLE

It is used in the areas of frost prevention, open areas, car park entrances and exits, helicopter landing areas, concrete ramps, stairs and walkways.

ELSR Ramp

This heating cable is designed for easy and safe installation of open-space heaters. Accidents due to frost and snow are prevented all over the heated space. To ensure a high mechanical load capacity in open space, the eltherm engineers developed this heating cable especially robust. Suited for installation in sand/cement mixtures

Advantages:

• Highly robust
• Suited for hardest installing conditions
• Flexible mounting
• Radially and longitudinally waterproof, outer jacket is strongly grouted with protective braid
•

Applications:

• Parking garages entrances and exits
• Helicopter landing sites
• Concrete ramps
• Stairs and footpaths

Electrical protection

Maximum heating circuit length

According to local standards and regulations.

Take into account the conductor size and max. permitted voltage drop.

A higher voltage drop can occur at start-up of heating.

Power at start-up

To determine the installed power with the electrical system designer, the nominal current of the series connected fuse or the current value at the system start-up temperature must be taken into account (e.g. 32 A for 55 m ELSR-Ramp (–10°C).

Residual current device (RCD) 30 mA required, max. 500 m heating cable per RCD.

Remark

For the use of standard control cabinets, the maximum heating circuit length of 55 m at 32 A per heating circuit must not be exceeded

ELSR FHP 110°C Self Limiting Parallel Heating Tape ELSR-FHP

Brand: ELTHERM

Category: SELF-REGULATING HEATING CABLE

This specially designed heating cable prevents the foundation from freezing and frost formation by maintaining the temperature above freezing temperatures. A fluoropolymer outer jacket provides durability, good chemical compatibility and ease of installation.

ELSR FHP 110°C Self Limiting Parallel Heating Tape ELSR-FHP

Freezing and frost heave may occur underneath the foundations of cooled storage areas. This can result in a deformation of the storage base and can cause severe structural damage to the foundation. The most effective way to prevent these effects from occurring is by means of electrical heating. This specially designed heating cable prevents the foundation from freezing and frost formation by maintaining the temperature above freezing temperatures. A fluoropolymer outer jacket provides durability, good chemical compatibility and ease of installation. ELSR-FHP is suitable for use in hazardous areas

Advantages:

• Highly robust
• Suitable for harsh installed environment
• Flexible mounting
• Waterproof

Applications:

• Frost Heave Prevention
• Cryogenic Storage Tanks

ELTC 05 Frostcontrol

Brand: ELTHERM

Category: PIPELINE HEAT TRACING

Can be used as temperature monitoring and ambient and surface thermostat for frost protection. Suitable for resistance heating lines and self-regulating heating cables.

ELTC 05 Frostcontrol

The electronic temperature controller ELTC 05-Frostcontrol is designed for use as an ambient thermostat and surface thermostat with remote sensor. Cable glands and terminals are provided for power input. The unit is supplied in a weather proof plastic enclosure for wall mounting, with a grey cover. The controller should be protected from direct sunlight when used outdoors. In case of use as ambient temperature controller, the sensor cable is shortened to allow fastening of the sensor sleeve within the M12 gland. The sleeve should project by approximately 15 mm

Advantages:

• Weather proof
• Weather proof

Applications:

• Heat tracing for frost protection
• Can be used as ambient and surface thermostat
• Suitable for resistance heating lines and selfregulating heating cables

ELTC 14

Brand: ELTHERM

Category: PIPELINE HEAT TRACING

It is used in industrial applications and Mechanical, electrical and plumbing (MEP) fields.

 ELTC 14

The ELTC-14 is an electronic temperature controller with digital display for wall mounting. The temperature is measured by a Pt100 sensor, processed by the microcontroller and displayed. After having evaluated the actual and preset values, the appropriate output relays are switched, depending on the configuration. Cable glands and terminals are provided for the power connection. The unit is supplied in a weather proof plastic enclosure, with a transparent cover

Advantages:

• LED display operable down to -25 °C
• Programmable 0 °C up to +390 °C
• For switching 20 A resistive load with hybridrelay
• Signaling contact (configurable to operate either as alarm or release contact, potential-free)
• Suitable for Pt100 with 2 or 3 wires
• For connection of up to 2 heating cables
• Operating voltage: 90 - 260 VAC / 50/60 Hz

Applications:

• Industrial applications
• Mechanical, electrical and plumbing (MEP)

ELTC-21

Brand: ELTHERM

Category: PIPELINE HEAT TRACING

It is used in industrial applications and Mechanical, electrical and plumbing (MEP) fields.

ELTC-21

The ELTC-21 is an electronic temperature controller with digital display for top-hat rail mounting. The temperature is measured by a Pt100 sensor, processed by the microcontroller and displayed. After having evaluated the actual and preset values, the appropriate output relays are switched, depending on the configuration.

Advantages:

• LED display operable down to –25 °C
• Programmable -50 °C up to +400 °C
• For switching 16 A resistive load
• Alarm contact
• Pt100 with 2 or 3 wires

Applications:

• Industrial applications
• Mechanical, electrical and plumbing (MEP)
