Type ELKM-AG-L to 260 °C

Brand: ELTHERM

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

Eltherm ELKM-AG-L insulated resistance heating cables provide process temperature maintenance and frost protection to vessels, pipes, valves, IBC’s and tanks up to 260° Celsius.

Type ELKM-AG-L to 260 °C

In series resistance cables, the part that carries energy and the part that generates heat are the same, consisting of a chromium-nickel wire. These cables can be produced with different resistance values and are commonly used for heat tracing in long pipelines. The resistance of these cables is directly proportional to their length.

To prevent excessive increases in current passing through them, there is a minimum length limitation for their use. The appropriate resistance must be selected based on the required length and power. Depending on the required power, temperature values, and environmental conditions, the insulation material used may vary—from PVC to PTFE and even glass fiber for dry locations.

These cables can be used at temperatures of up to 260°C and 450°C, while metal-sheathed, mineral-insulated versions can withstand temperatures up to 1000°C.

Eltherm ELKM-AG-L insulated resistance heating cables provide process temperature maintenance and frost protection to vessels, pipes, valves, IBC’s and tanks up to 260° Celsius.

Applications:

• Filter heating
• Hopper heating
• Parabolic antenna heating
• Automotive
• Devices and systems made of metallic and non-metallic material

Advantages:

• Light design
• High chemical and mechanical resistance
• High operating temperature
• Moisture-resistant
• High level of flexibility
• Resistant to steam purging

PSB - 65 °C - 80 °C Self Limiting Parallel Heating Tape PSB

Brand: BARTEC

Category: SELF-REGULATING HEATING CABLE

The PSB heating tape is suitable for electric trace heating for frost protection of pipelines and vessels.

Self Limiting Parallel Heating Tape PSB - 65 °C - 80 °C Cable

A temperature-dependant resistive element between two parallel copper conductors regulates and limits the heat output of the heating tape according to the ambient temperature. If the ambient temperature rises, the power output of the heating tape is reduced. This self-limiting property prevents overheating even when the tapes are crossed. A temperature limiter is not necessary (also not in hazardous areas). Thanks to the parallel design the heating tape can be cut and installed to any required length. The self-limiting heating tape is available with different power outputs and protective jackets. The protective outer jacket of either fluoropolymer or polyolefin protects the copper braiding from corrosion and chemical impact. Two  jackets under the protective braiding provide electrical insulation. The inner one of the two jackets is thermally fused to the heating element (bonded jacket). The heating system must be designed to ensure that the maximum operating temperature of 65 °C will notbe exceeded when it is energized. When it is switched off, the heating tape can be exposed to a temperature of 85 °C, not more than 1,000 hours cumulated.

Application Areas:

• Protection of liquid and gas pipelines from freezing in the chemical, petrochemical, food, and pharmaceutical industries.
• Temperature control of pipeline systems in production processes.
• Heating of pipelines in hazardous areas (ATEX-certified zones).
• Ensuring fluidity in crude oil and natural gas pipelines.
• Preventing fire suppression pipes from freezing in cold weather conditions.
• Maintaining temperature in water supply lines and storage tanks.
• Preventing freezing of liquids inside chemical and food storage tanks.
• Protection of building and facility pipelines in cold weather conditions.

Type ELK-MI AY 825 Twin Conductor

Brand: ELTHERM

Category: HIGH TEMPERATURE MI TYPE MINEREL INSULATED CABLES

It is used in the fields of Chemistry and Petrochemicals, Oil and Gas Industry, Industrial processes, Mobile processing plants, Vacuum processes.

Type ELK-MI AY 825 Twin Conductor

MI-trace heaters consist of a single or two conductor series trace heater connected to mineral-insulated cold leads by means of a clean laser seal (splice). The outer sheath material is Alloy 825. The free end of the cold lead is potted and fitted with a flexible lead (cross section matching that of the cold lead conductor) for power connection and a 1.5 mm² (0,002325 in²) lead for earthing. A compression ring flameproof stainless steel gland 1.4404 (AISI 316L) threaded M20x1.5 or M25x1.5 is fitted at the end of each cold lead and prevented from possible loss by the potted end seal. MI trace heaters are supplied prefabricated by eltherm and ready for installation. Each unit comes with a type plate bearing all information / markings. Maximum maintain temperatures are derived from the maximum sheath temperature determined by eltherm and are also indicated on the type plate.

Applications:

• Chemistry and Petrochemistry
• Oil and Gas Industry
• Industrial processes
• Mobile processing facilities
• Vacuum processes

Benefits:

• 100% homogeneous design in premium Alloy 825
• No filling holes
• Single and Twin design
• High temperature resistance
• Maximum resistance to chemicals (chlorides, etc.)
• High power output
• Protection against stress corrosion
• Sea water-resistant, maximum corrosion resistance

Approvals:

• Classification: II 2 G Ex 60079-30-1 db eb IIC Gb, II 2 D Ex 60079-30-1 tb IIIC Db
• Certification: FM15ATEX0046X, FM18US0191X, FM18CA0089X, IECEx FME 15.0009X

Type ELK-MI VA Single Conductor

Brand: ELTHERM

Category: HIGH TEMPERATURE MI TYPE MINEREL INSULATED CABLES

It is used in the fields of Chemistry and Petrochemicals, Oil and Gas Industry, Industrial processes, Mobile processing plants, Vacuum processes.

Type ELK-MI VA Single Conductor - Mineral Insulated Heating Cable

MI-trace heaters consist of a single conductor series trace heater connected to mineral-insulated cold leads (with 2,0, 2,5, 3,3 or 5,0 mm² copper conductor) by means of a clean laser seal (splice). The outer sheath is made of high quality stainless steel 1.4541 (AISI 321). The free end of the cold lead is potted and fitted with a flexible lead (cross section matching that of the cold lead conductor) for power connection and a 1,5 mm² lead for earthing. A com-pression ring flameproof stainless steel gland 1.4404 (AISI 316L) threaded M20x1.5 or M25x1.5 is fitted at the end of each cold lead and prevented from possible loss by the potted end seal. MI trace heaters are supplied prefabricated by eltherm and ready for installation. Each unit comes with a type plate bearing all information / markings. Maximum maintain temperatures are derived from the maximum sheath temperature determined by eltherm and are also indicated on the type plate.

Applications:

• Chemistry and Petrochemistry
• Oil and Gas Industry
• Industrial processes
• Mobile processing facilities
• Vacuum processes

Application Areas:

• Protection of pipelines and tanks carrying chemical substances from freezing.
• Heating of crude oil and natural gas pipelines to ensure fluidity.
• Use in production lines requiring temperature control in processes.
• Protection of piping systems in portable or temporary facilities.
• Ensuring temperature control in vacuum-operated systems.

Benefits:

• 100% homogeneous design
• No filling holes
• Single design
• High temperature resistance
• Maximum resistance to chemicals
• High power output
• Protection against stress corrosion
• Resistant against moisture

Approvals:

• Classification : II 2 G Ex 60079-30-1 db eb IIC Gb II 2 D Ex 60079-30-1 tb IIIC Db
• Certification : FM15ATEX0046X FM18US0191X FM18CA0089X IECEx FME 15.0009X

MSB -110 °C - 130 °C Self Limiting Parallel Heating Tape MSB

Brand: BARTEC

Category: SELF-REGULATING HEATING CABLE

The MSB heating tape is suitable for electric trace heating in the industrial area and can be exposed to a temperature of up to 130 °C (switched off).

Self Limiting Parallel Heating Tape MSB - 110 °C - 130 °C Kablo

Self limiting parallel heating tape MSB medium temperature — a temperature-dependent resistive element between two parallel copper conductors regulates and limits the heat output of the heating tape. This output regulation is carried out automatically along the entire length of the heating tape according to the prevailing ambient temperature. If the ambient temperature rises, the power output of the tape is reduced. Thanks to the parallel design, the heating tape can be cut to any required length. This feature considerably simplifies project planning and installation. The heating tape is cut and terminated directly on the construction site according to the circumstances. If the tape is damaged, it is not necessary to replace the whole tape. BARTEC MSB is available with different power outputs. The heating system must be designed to ensure that the maximum operating temperature of +110 °C will not be exceeded when it is energized. When it is switched off, the heating tape can be exposed to a temperature of 130 °C, not more than 1,000 hours cumulated.

• Can be cut to length at random thanks to its parallel current supply
• Resistant to chemical influences thanks to its protective TPC protective jacket
• Simple installation thanks to its high flexibility

Areas of Application

The MSB heating tape is suitable for electric trace heating in the industrial area and can be exposed to a temperature of up to 130 °C (switched off). With the halogen-free protective jacket, the heating tape is resistant to oil, greases, and most chemicals. For questions regarding the chemical resistance, please contact your BARTEC sales representative.

HSB -150 °C - 225 °C Self Limiting Parallel Heating Tape HSB

Brand: BARTEC

Category: SELF-REGULATING HEATING CABLE

The HSB heating tape is suitable for frost protecting in industrial areas. The level of its maximum possible heating output allows the heating tape to be used for maintaining high process temperatures.

Self Limiting Parallel Heating Tape HSB - 120 °C - 200 °C Cable

Self limiting parelel heating tape HSB+ high temperature a temperature-dependant resistive element between two parallel copper conductors regulates and limits the power output of the heating tape. This output regulation is carried out automatically along the entire length of the heating tape according to the prevailing ambient temperature. If the ambient temperature rises, the power output of the tape is reduced. This self-limiting property prevents overheating even when the tapes are crossed. Thanks to the parallel design the heating tape can be cut to any required length. This feature considerably simplifies project planning and installation. The heating tape is cut and terminated directly on the construction site according to the circumstances. The heating system must be designed to ensure that the maximum operating temperature of +120 °C will not be exceeded when it is energized. When switched off, the heating tape can be exposed to a temperature of 200 °C for a short time, not more than 1,000 hours cumulated.

• Can be cut to length at random thanks to its parallel current supply
• Corrosion-proof and resistant to chemical attack thanks to its protective outer jacket of fluoropolymer
• Simple installation thanks favourable dimensions

Areas Of Application

The HSB heating tape is suitable for frost protecting in industrial areas. The level of its maximum possible heating output allows the heating tape to be used for maintaining high process temperatures.

HTSB -250 °C -250°C Self Limiting Parallel Heating Tape HTSB

Brand: BARTEC

Category: SELF-REGULATING HEATING CABLE

The HTSB heating tape is the right solution for frost protection or temperature maintenance in pipelines or vessels in the industrial area.

Self limiting parallel heating tape HTSB - 220 °C - 250 °C Cable

Self limiting parelel heating tape HTSB high temperature a temperature-dependent resistive element between the parallel copper conductors regulates and limits the power output of the heating tape. This output regulation is carried out automatically at every point of the heating tape depending on the prevailing ambient temperature. If the ambient temperature increases, the power output is reduced. The parallel design allows the heating tape to be cut to any length. This simplifies planning and installation. The heating tape is cut directly on the construction site according the local circumstances. The heating system must be designed to ensure that the maximum operating temperature of +250 °C will not be exceeded when it is energized. When switched off, the heating tape may be exposed to a temperature of 250 °C for a short time, not more than 1,000 hours cumulated.

• Steam purging possible
• Wide operating temperature range
• Can be used in explosive atmospheres without temperature limiter
• Simple installation thanks to its high flexibility
• Outer protective fluoropolymer jacket ensures resistance to corrosion and chemical influences

Application Areas:

• Protection of pipelines and tanks carrying chemical substances from freezing.
• Temperature control in process lines working with corrosive and aggressive chemicals.
• Heating of crude oil and natural gas pipelines to ensure fluidity.
• Protection of high-temperature-required pipelines in refineries and petroleum processing plants.
• Safe temperature control in explosive atmospheres (Ex-proof zones).
• Safe use without the need for a temperature limiter.

Applications

The HTSB heating tape is the right solution for frost protection or temperature maintenance in pipelines or vessels in the industrial area. It is particularly suitable for applications with high ambient temperatures or aggressive chemicals.

Type ELKM-A to 260 °C Series resistance polymer insulated heating cables

Brand: ELTHERM

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

It is used in frost protection, temperature maintenance, silos, containers, tanks, valves, pumps, rotor blades, marble tiles, devices and systems made of non-metallic materials.

Type ELKM-A to 260 °C Series Resistance Polymer Insulated Heating Cables

The ELKM-A series series resistance cables feature a chromium-nickel wire structure where the energy-carrying and heat-generating components are the same. Designed for safe operation at temperatures up to 260°C, these cables can be manufactured with different resistance values and are widely used for heat tracing in long pipelines. Their resistance is directly proportional to their length.

To prevent excessive current flow, there is a minimum length limitation for their use. Selecting the appropriate resistance value is essential for optimal performance and energy efficiency. Depending on required power, temperature levels, and environmental conditions, the insulation material can vary from PVC to PTFE. With its 260°C heat resistance, the ELKM-A series provides a reliable solution for industrial heating applications.

ADVANTAGES:

• High level of flexibility
• Small bending radius
• High chemical resistance
• Moisture-resistant

FIELDS OF APPLICATION:

• Containers, pipes, valves, silos, tanks
• Frost protection, temperature maintenance
• Many industries
• Rotor blades
• Marble tiles

EKL Light Flexible Single-Core Series resistance polymer insulated heating cables

Brand: ELTHERM

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

It is suitable for freeze protection applications and temperature maintenance in pipes and tanks and is also extremely flexible. This makes EKL light easy to install even on irregular shapes such as pumps, valves and flanges.

EKL Light - Flexible Single Core Plastic Insulated Heating Cable +260 °C

EKL light is a serial resistant heating cable for use in industrial and commercial areas. It is suitable for frost protection applications and temperature maintenance on pipes and tanks and it is also extremely flexible. This makes EKL light easy to install, even on irregular shapes such as on pumps, valves and flanges. The PFA protective jacket gives the EKL light a high degree of chemical and mechanical resistance, even at high temperatures. In economical terms, EKL light is a genuine alternative to SLHBs when the latter’s maximum heating circuit lengths are exceeded. With pre-assembled cold leads and our connection technology, complete heating circuits can be set up quickly and flexibly.

• Constant power output per meter
• Steam purging resistant, suitable for high temperatures up to +260 °C
• Easy installation, very flexible

Application Areas:

• Protection of pipelines and tanks carrying chemical substances from freezing.
• Temperature control in process lines working with corrosive and aggressive chemicals.
• Heating of crude oil and natural gas pipelines to ensure fluidity.
• Protection of high-temperature-required pipelines in refineries and petroleum processing plants.
• High-temperature maintenance in systems resistant to steam cleaning.
• Flexible heating applications for irregularly shaped components such as pumps, valves, and flanges.
• Applications requiring long heating circuits in industrial and commercial areas.
• Safe temperature control in explosive atmospheres (Ex-proof zones).
• Safe use without the need for a temperature limiter.

Type ELKM-AS to 260 °C Series Resistance Polymer Insulated Heating Cables

Brand: ELTHERM

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

It is used in containers, pipes, valves, silos, tanks, freeze protection, temperature maintenance, many industries, rotor blades and marble tiles.

Type ELKM-AS to 260 °C Series Resistance Polymer Insulated Heating Cables

The ELKM-AS series series resistance cables feature a chromium-nickel wire structure where the energy-carrying and heat-generating components are the same. Designed for safe operation at temperatures up to 260°C, these cables can be manufactured with different resistance values and are widely used for heat tracing in long pipelines. Their resistance is directly proportional to their length.

To prevent excessive current flow, there is a minimum length limitation for their use. Selecting the appropriate resistance value is essential for optimal performance and energy efficiency. Depending on required power, temperature levels, and environmental conditions, the insulation material can vary from PVC to PTFE. With its 260°C heat resistance, the ELKM-AS series provides a reliable solution for industrial heating applications.

ADVANTAGES:

• High level of flexibility
• Small bending radius
• High chemical resistance
• Moisture-resistant

FIELDS OF APPLICATION:

• Containers, pipes, valves, silos, tanks
• Frost protection, temperature maintenance
• Many industries
• Rotor blades
• Marble tiles

Type ELKM-AE to 260 °C Series Eesistance Polymer Insulated Heating Cables

Brand: ELTHERM

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

It is used in containers, pipes, valves, silos, tanks, Freeze protection, temperature maintenance, Mold heating, IBCs and Antenna heating.

Type ELKM-AE to 260 °C Series Eesistance Polymer Insulated Heating Cables

The ELKM-AE series series resistance cables feature a chromium-nickel wire structure where the energy-carrying and heat-generating components are the same. Designed for safe operation at temperatures up to 260°C, these cables can be manufactured with different resistance values and are widely used for heat tracing in long pipelines. Their resistance is directly proportional to their length.

To prevent excessive current flow, there is a minimum length limitation for their use. Selecting the appropriate resistance value is essential for optimal performance and energy efficiency. Depending on required power, temperature levels, and environmental conditions, the insulation material can vary from PVC to PTFE. With its 260°C heat resistance, the ELKM-AE series provides a reliable solution for industrial heating applications.

ADVANTAGES:

• High level of flexibility
• Small bending radius
• High chemical resistance
• Moisture-resistant

FIELDS OF APPLICATION:

• Containers, pipes, valves, silos, tanks
• Frost protection, temperature maintenance
• Mould heating
• IBCs
• Antenna heating

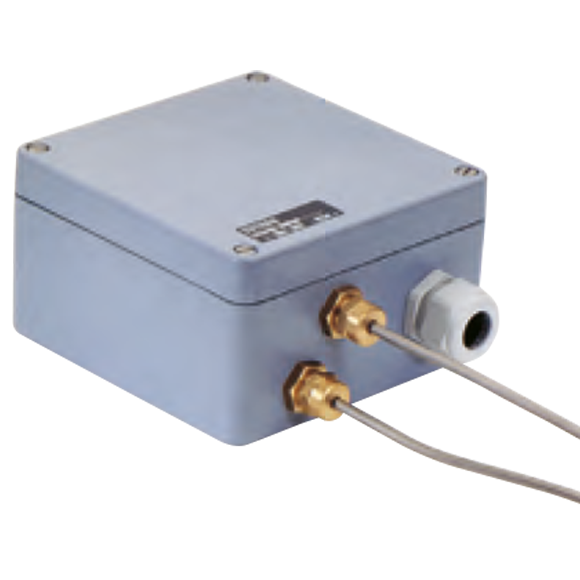

EKL Light Junction Box

Brand: BARTEC

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

Suitable for freeze protection applications and temperature maintenance in pipes and tanks.

EKL Light - Junction Box

Polyester enclosures have proven their worth in many industrial plants. They offer safe protection even when they are used under extremely unfavorable conditions, on exposure to aggressive chemical media or hard mechanical conditions. The inside base of the enclosure has at its sides, threaded bushings for the fastening of mounting rails or panels. The enclosure is mounted by means of insulated screws outside of the lid seal.

• Temperature-resistant
• Flame-retardant
• Absolutely corrosion-proof
• Seawater-proof

Application Areas:

• Safe protection of electrical connections in industrial facilities.
• Insulation of connection points in corrosive and aggressive chemical environments.
• Use of junction boxes for heating systems in oil, gas, and petrochemical plants.
• Protection of seawater-resistant connection points in maritime and offshore applications.
• High-temperature-resistant applications in refineries and power plants.
• Secure installation of cable connections in industrial areas with harsh mechanical conditions.
• Safe usage in explosive atmospheres (Ex-proof zones) due to its flame-retardant properties.
• Hygienic and durable enclosure solutions for the food and pharmaceutical industries.

EKL Medium Flexible Single Series resistance polymer insulated heating cables

Brand: BARTEC

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

It is widely used in pumps, valves, flanges and construction sites.

EKL Medium - Flexible Single Core Plastic Insulated Heating Cable

EKL medium is an extremely flexible heating cable with a fixed specific resistance. Thanks to its small outer dimensions, the heating cable can be easily installed even on irregularly objects such as pumps, valves and flanges. The heating cable can be easily tailored on sites and made even easier by the imprinted metre markings.

• Constant power output per meter
• Steam purging resistant, high chemical resistance
• ATEX approved according to EN 60079
• Suitable for use in hazardous areas (4 J impact resistance)

Application Areas:

• Protection of pipelines and tanks carrying chemical substances from freezing.
• Temperature control in process lines working with corrosive and aggressive chemicals.
• Heating of crude oil and natural gas pipelines to ensure fluidity.
• Protection of high-temperature-required pipelines in refineries and petroleum processing plants.
• High-temperature maintenance in systems resistant to steam cleaning.
• Flexible heating applications for irregularly shaped components such as pumps, valves, and flanges.
• Applications requiring long heating circuits in industrial and commercial areas.
• Safe temperature control in explosive atmospheres (Ex-proof zones).
• Safe use in hazardous areas requiring ATEX certification.

EKL Premium Flexible Series resistance polymer insulated heating cables

Brand: BARTEC

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

It is widely used in pumps, valves, flanges and construction sites.

EKL Premium - Flexible Single Core Plastic Insulated Heating Cable

EKL premium is a flexible heating cable with a fixed specific resistance. It’s small external dimensions make the heating cable easy to install, even on irregularly shaped surfaces such as on pumps, valves and flanges. Assembly on sites is simple and made even easier by the imprinted metre markings. The reinforced structure facilitates applications of the EKL premium heating cable even under increased mechanical stress (7 Joule).

• Constant power output per meter
• Steam purging resistant, high resistant to chemicals
• ATEX approved according to EN 60079
• Suitable for applications in hazardous area

Application Areas:

• Protection of pipelines and tanks carrying chemical substances from freezing.
• Temperature control in process lines working with corrosive and aggressive chemicals.
• Heating of crude oil and natural gas pipelines to ensure fluidity.
• Protection of high-temperature-required pipelines in refineries and petroleum processing plants.
• High-temperature maintenance in systems resistant to steam cleaning.
• Flexible heating applications for irregularly shaped components such as pumps, valves, and flanges.
• Safe heating applications in areas exposed to high mechanical stress.
• Applications requiring long heating circuits in industrial and commercial areas.
• Safe temperature control in explosive atmospheres (Ex-proof zones).
• Safe use in hazardous areas requiring ATEX certification.

Type ELKM-AG to 250 °C Series Resistance Polymer Insulated Heating Cables

Brand: ELTHERM

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

It is used in Chemical, Oil and gas industry, Liquid handling, Tank containers, IBCs, Waste water facilities, Instrumentation, Manufacturing processes and devices and systems made of metallic and non-metallic materials.

Type ELKM-AG to 250 °C Series Resistance Polymer Insulated Heating Cables

The ELKM-AG series series resistance cables feature a chromium-nickel wire structure where the energy-carrying and heat-generating components are the same. Designed for safe operation at temperatures up to 250°C, these cables can be manufactured with different resistance values and are widely used for heat tracing in long pipelines. Their resistance is directly proportional to their length.

To prevent excessive current flow, there is a minimum length limitation for their use. Selecting the appropriate resistance value is essential for optimal performance and energy efficiency. Depending on required power, temperature levels, and environmental conditions, the insulation material can vary from PVC to PTFE. With its 250°C heat resistance, the ELKM-AG series provides a reliable solution for industrial heating applications.

ADVANTAGES:

• Maximum chemical and mechanical resistance
• High holding temperatures
• Easy to lay, even in complex structural shapes
• Simple connection technology
• Large selection ofresistances
• Longer heating circuits
• Moisture-resistant

APPLICATIONS:

• Chemistry
• Oil and gas industry
• Liquid keeping
• Tank containers
• IBCs
• Wastewater facilities
• Instrumentation
• Production processes
• Devices and systems made of metallic and non-metallic material

Application Areas:

• Heating and temperature control of pipelines and tanks carrying chemical substances.
• Applications requiring long heating circuits in the oil and gas industry.
• Prevention of freezing and maintenance of temperature in liquid storage tanks.
• Temperature maintenance in tank containers and portable liquid storage systems.
• Heating applications in IBC (Intermediate Bulk Container) containers.
• Temperature control and freeze prevention in wastewater treatment plants.
• Precise temperature management in instrumentation systems.
• Industrial production processes requiring high-temperature resistance.
• Temperature control in metallic and non-metallic devices and systems.

Type ELKM-AG-E to 260 °C Series Resistance Polymer Insulated Heating Cables

Brand: ELTHERM

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

It is used in frost protection, temperature maintenance, silos, containers, tanks, valves, pumps, filter heating, hopper heating, automotive, paint shops, heating mantles and devices and systems made of (non-metallic) materials.

Type ELKM-AG-E to 260 °C Series Resistance Polymer Insulated Heating Cables

The ELKM-AG-E series series resistance cables feature a chromium-nickel wire structure where the energy-carrying and heat-generating components are the same. Designed for safe operation at temperatures up to 260°C, these cables can be manufactured with different resistance values and are widely used for heat tracing in long pipelines. Their resistance is directly proportional to their length.

To prevent excessive current flow, there is a minimum length limitation for their use. Selecting the appropriate resistance value is essential for optimal performance and energy efficiency. Depending on required power, temperature levels, and environmental conditions, the insulation material can vary from PVC to PTFE. With its 260°C heat resistance, the ELKM-AG-E series provides a reliable solution for industrial heating applications.

ADVANTAGES:

• High chemical and mechanical resistance
• Can be used in all industrial areas
• High operating temperature
• Easy to lay, even in complex structural shapes
• High level of flexibility
• Resistant to steam purging
• Moisture-resistant

APPLICATION:

• Frost protection
• Temperature maintenance
• Silos, containers, tanks
• Valves, pumps
• Filter heating
• Hopper heating
• Automotive
• Paint shops
• Heating mantles
• Devices and systems made of (non-) metallic materia

Application Areas:

• Freeze protection for pipelines and tanks in industrial facilities.
• Heating solutions for maintaining the temperature of liquids and gases.
• Temperature control in silos, containers, and tanks.
• Protection of components such as valves, pumps, and flanges from freezing.
• Enhancing efficiency in filter heating systems.
• Temperature management in hoppers and process equipment.
• Temperature control for specific production stages in the automotive industry.
• Heating solutions for optimizing surface temperatures in paint workshops.
• Ensuring energy efficiency in process lines using heating jackets.
• Temperature control for devices and systems made of metallic and non-metallic materials.
• Heating systems resistant to steam cleaning and moisture exposure.
• Industrial applications requiring chemically and mechanically resistant heating solutions.

EKL Medium Premium ECT Connection Technology

Brand: ELTHERM

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

Designed for use in potentially explosive environments. Can also be used to connect a cold wire or to connect two heating wires.

EKL Medium Premium - ECT Connection Technology

The EKL Connection Technology is a connection system for EKL medium and EKL premium for use in potentially explosive atmospheres. Depending on the design, the ECT connection technology may be used to connect a cold lead or to connect two heating cables. Butt connectors, which ensure a reliable and permanent connection, are used for the electrical connection of the heating wire and the protective braid. Using pre-assembled cold leads and our connection technology, complete heating circuits can be constructed quickly and flexibly.

• Simple and fast installation
• Low stock levels needed (because it can be used as terminal or connection)
• High chemical resistance, for almost all industrial chemicals and solvents

Application Areas:

• Explosive Atmospheres (Ex-proof Zones): Safe connections in ATEX-certified hazardous areas.
• Industrial Heating Systems: Reliable connection solutions for EKL Medium and EKL Premium heating cables.
• Chemical and Petrochemical Plants: Highly resistant connection systems against corrosive chemicals and solvents.
• Oil and Gas Industry: Durable connection applications for pipeline and tank temperature control.
• Food and Pharmaceutical Industry: Heating circuit connections that comply with hygiene standards.
• Maritime and Offshore Applications: Seawater-resistant connection systems.
• Power Generation Facilities: Long-lasting and durable connection solutions in power plants.
• Automotive and Production Lines: Temperature-controlled connection technology in manufacturing processes.
• Paint and Coating Industry: Connection points resistant to chemicals and solvents.
• Vacuum and Pressure Systems: Connection systems resistant to high temperatures and pressure.

Type ELKM-AG-N to 260 °C Series Resistance Polymer Insulated Heating Cables

Brand: ELTHERM

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

It is used in frost protection, temperature maintenance, silos, containers, tanks, valves, pumps, filter heating, hopper heating, paint shops, tank containers, automotive and devices and systems made of (non-metallic) materials.

Type ELKM-AG-N to 260 °C - High Temperature Resistant Heating Cable

Applications :

• Frost protection
• Temperature maintenance
• Silos, containers, tanks
• Valves, pumps
• Filter heating
• Hopper heating
• Paint shops
• Tank containers
• Automotive
• Devices and systems made of (non-) metallic material

Advantages :

• High chemical and mechanical resistance
• High operating temperature
• Moisture-resistant
• High level of flexibility
• Resistant to steam purging

Application Areas:

• Freeze Protection: Preventing freezing of pipelines and storage tanks in industrial facilities.
• Temperature Maintenance: Ensuring stable temperature control in processes requiring continuous heat.
• Silos, Containers, and Tanks: Managing temperature in storage units.
• Valves and Pumps: Protecting fluid transport systems from freezing and improving efficiency.
• Filter Heating: Maintaining optimal temperature levels in industrial filters.
• Hopper Heating: Heating hoppers to facilitate material flow in production processes.
• Paint Workshops: Maintaining temperature stability during painting processes.
• Tank Containers: Temperature control in portable liquid and chemical storage units.
• Automotive Industry: Temperature management in manufacturing processes.
• Non-Metallic Devices and Systems: Heating solutions for systems made of plastic and composite materials.

EKL Medium Premium Junction Box

Brand: ELTHERM

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

Polyester enclosures have proven their value and safe use in many industrial areas.

ACL Medium - Premium Junction Box

Polyester enclosures have proven their worth in many industrial plants. They offer safe protection even when they are used under extremely unfavorable conditions, on exposure to aggressive chemical media or hard mechanical conditions. The inside base of the enclosure has at its sides, threaded bushings for the fastening of mounting rails or panels. The enclosure is mounted by means of insulated screws outside of the lid seal.

• Temperature-resistant
• Flame-retardant
• For use in hazardous areas with surface resistance < 109 Ω
• Absolutely corrosion-proof
• Seawater-proof

Application Areas:

• Safe protection of electrical connections in industrial facilities.
• Insulation of connection points in corrosive and aggressive chemical environments.
• Use of junction boxes in oil, gas, and petrochemical plants.
• Applications requiring high-temperature and chemical-resistant enclosures in refineries and petroleum processing plants.
• Safe use of junction enclosures in explosive atmospheres (Ex-proof zones).
• Protection of seawater-resistant connection points in maritime and offshore applications.
• Secure installation of cable connections in industrial areas exposed to harsh mechanical conditions.
• Use of hygienic and corrosion-resistant junction enclosures in the food and pharmaceutical industries.

HEM-PT-68000 220 °C

Brand: HEMSTEDT

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

Outside diameter: Approximately 2.2 mm. However, the outer diameters of heating cables with high nominal resistance may vary.

HEM-PT-68000 - 220 °C High Temperature Resistant Heating Cable

Application Areas:

• Preventing freezing and maintaining temperature control in pipelines.
• Keeping materials in tanks and silos at a specific temperature and protecting against freezing.
• Maintaining the desired temperature of molds used in manufacturing processes.
• Temperature monitoring and maintenance applications in industrial process lines.
• Temperature control in process lines exposed to corrosive and aggressive chemicals.
• Managing temperature to maintain hygienic conditions in the food and pharmaceutical industries.
• Use in systems requiring high temperatures in refineries and petrochemical plants.
• High-temperature maintenance in systems resistant to steam cleaning.
• Applications requiring long heating circuits in industrial and commercial areas.
• Temperature control and process heating applications in the automotive and production industries.

220 °C HEM-PT-68001

Brand: HEMSTEDT

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

Cable nominal resistance: Varies between 200 - 3000 Ohm/km. This is a range of resistance that varies depending on cable size and material.

HEM-PT-68001 - 220 °C High Temperature Resistant Heating Cable

Application Areas:

• Preventing freezing and maintaining temperature control in pipelines.
• Keeping materials in tanks and silos at a specific temperature and protecting against freezing.
• Use in process lines requiring temperature control in production processes.
• Temperature control in process lines exposed to corrosive and aggressive chemicals.
• Managing temperature to maintain hygienic conditions in the food and pharmaceutical industries.
• Temperature control for pipelines and equipment in power plants.
• Temperature control and process heating applications in automotive production lines.
• Heating solutions resistant to seawater for maritime and offshore applications.
• Use in the paint and coating industry to optimize surface temperature.
• Heating solutions resistant to high temperatures and pressure in vacuum and pressurized systems.

EMK Single Core Mineral İnsulated Heating Cable

Brand: ELTHERM

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

A distinguishing feature of our BARTEC EMK heating cables is that they are extremely robust and require no additional protection against mechanical influences.

EMK - Single Core Mineral Insulated Heating Cable

A distinguishing feature of our BARTEC EMK heating cables is that they are extremely robust and require no additional protection against mechanical influences.

FUNCTION

The application of a supply voltage to the resistance cable generates heat. The quantity of heat is dependent on the resistance value of the heating cable and the supply voltage.

• High constant power output per metre
• Extremely high mechanical strength
• Highly resistant to chemicals

Applications:

• Protection of pipelines and tanks carrying chemical substances from freezing.
• Temperature control in process lines exposed to corrosive and aggressive chemicals.
• Heating of crude oil and natural gas pipelines to ensure fluidity.
• Protection of high-temperature-required pipelines in refineries and petroleum processing plants.
• Temperature control of pipelines and equipment in power plants.
• Temperature management to maintain hygienic conditions in the food and pharmaceutical industries.
• Seawater-resistant heating solutions for maritime and offshore applications.
• Use in the paint and coating industry to optimize surface temperature.
• Heating solutions resistant to high temperatures and pressure in vacuum and pressurized systems.
• Heating applications requiring high mechanical strength in industrial facilities.

HEM-PT-68011 220 °C

Brand: HEMSTEDT

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

HEM-PT-68011 PTFE insulation used as Marble Heating Cable provides high temperature resistance and has chemical resistance properties.

HEM-PT-68011 - 220 °C High Temperature Resistant Heating Cable

Applications:

• High-Temperature Applications: Suitable for high-temperature applications ranging from -55°C to +240°C.

• Harsh Environmental Conditions: Provides temperature control in process lines dealing with corrosive and aggressive chemicals.​

• Power Generation Facilities: Effective in temperature control of pipelines and equipment in power plants.​

• Food and Pharmaceutical Industry: Ensures temperature management in applications requiring hygienic conditions.​

• Maritime and Offshore Applications: Offers a reliable heating solution in the maritime sector due to its seawater-resistant structure.​

• Paint and Coating Industry: Used to optimize surface temperature in paint workshops.​

• Vacuum and Pressurized Systems: Applied in scenarios requiring heating systems resistant to high temperatures and pressure.

HEM-PTCu-68300 220 °C

Brand: HEMSTEDT

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

HEM-PTCu-68300 PTFE insulation used in antenna and freeze protection areas provides high temperature resistance and has chemical resistance properties.

HEM-PTCu-68300 - 220 °C High Temperature Resistant Heating Cable

Applications:

• High-Temperature Applications: Suitable for applications ranging from -55°C to +240°C.

• Harsh Environmental Conditions: Provides temperature control in process lines dealing with corrosive and aggressive chemicals.​

• Power Generation Facilities: Effective in temperature control of pipelines and equipment in power plants.​

• Food and Pharmaceutical Industry: Ensures temperature management in applications requiring hygienic conditions.​

• Maritime and Offshore Applications: Offers a reliable heating solution in the maritime sector due to its seawater-resistant structure.​

• Paint and Coating Industry: Used to optimize surface temperature in paint workshops.​

• Vacuum and Pressurized Systems: Applied in scenarios requiring heating systems resistant to high temperatures and pressure.

EMK Connection Kits And Heating Circuits, Pre Assembled

Brand: HEMSTEDT

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

These connection kits have been specifically designed for EMK heating cables and their particular fields of application.

EMK - Connection Kits and Heating Circuits (Pre-Assembled)

• Easy selection of the necessary components
• Large variant variety
• Quick to install

These connection kits have been specifically designed for EMK heating cables and their particular fields of application. There are two versions of the EMK connection kit available: Standard version and Ex version for use in hazardous areas. The EMK connection kits consist of: Cold leads in the required quantity, hot to cold joints in the required quantity, pre-cut and factory terminated assembly of the cold leads and hot to cold joints with EMK heating cable (heating cables must be ordered separately. See ordering information).

Application Areas:

• Freeze protection of pipelines
• Tank and storage heating
• Roof and gutter heating
• Floor heating
• Industrial process heating
• Hazardous areas (Ex version)
• Cold room heating
• Valve heating
• Filter heating
• Hopper heating
• Parabolic antenna heating
• Automotive
• Devices and systems made of metallic and non-metallic materials

HEM-PTVA-68301 220 °C

Brand: HEMSTEDT

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

HEM-PTVA-68301 PTFE insulation used in antenna and freeze protection areas provides high temperature resistance and has chemical resistance properties.

HEM-PTVA-68301 - 220 °C High Temperature Resistant Heating Cable

Application Areas:

• Industrial furnaces and dryers
• High-temperature process equipment
• Heating of pipelines and tanks
• Laboratory equipment
• Automotive industry
• Extruder heating
• Hot press applications
• Chemical processes
• Oil Industry applications.

HEM-PFACuvn-69006 220 °C

Brand: HEMSTEDT

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

This cable, which has PTFE insulation providing high temperature resistance and chemical resistance properties, can be easily used in antenna, industrial, freezing areas, roofs and many other areas.

HEM-PFACuvn-69006 - 220 °C High Temperature Resistant Heating Cable

Application Areas:

• Industrial furnaces and dryers
• High-temperature process equipment
• Heating of pipelines and tanks
• Laboratory equipment
• Automotive industry
• Extruder heating
• Hot press applications
• Chemical processes
• Oil industry applications
• Cold storage rooms
• Industrial and domestic cooling devices
• Industrial storage tank heating
• Prevention of snow and ice accumulation and freezing in rail transportation systems.

EMK Single Core Mineral İnsulated Heating Circuit, Laser Welded

Brand: ELTHERM

Category: HIGH TEMPERATURE SERIES-RESISTANT HEATING CABLES

Typical applications are, for example, frost protection, temperature maintenance and heating in pipes, tanks, pumps, valves and vessels.

EMK - Single Core Mineral Insulated Heating Circuit (Laser Source)

• Metre başına yüksek sabit güç çıkışı
• Son derece yüksek mekanik mukavemet
• Kimyasallara karşı oldukça dayanıklı

BARTEC EMK ısıtma devreleri son derece sağlam ve mekanik olarak yüklenebilir olmaları gibi temel özelliklere sahiptir. Lazer kaynaklı ısıtma devrelerinin ek avantajları, en yüksek çalışma sıcaklıklarına uygunluk ve iyi kimyasal dirençtir. Tipik uygulamalar; örneğin borularda, tanklarda, pompalarda, vanalarda ve kaplarda donmaya karşı koruma, sıcaklığın korunması ve ısınmadır. Fonksiyon Rezistans kablosuna besleme geriliminin uygulanması ısı üretir. Isı miktarı, ısıtma kablosunun direnç değerine ve besleme voltajına bağlıdır.

Application Areas:

• High-temperature furnaces
• Industrial process heating
• Nuclear power plants
• Aerospace industry
• Chemical processes
• Oil refineries
• Research laboratories
• Extruder Heating
• Hot press applications
