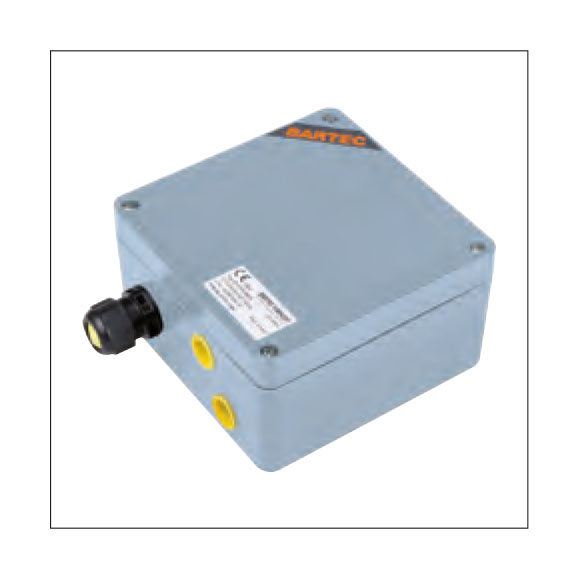

EKL Light Junction Box
High Temperature Series-Resistant Heating Cables - EKL Light Junction Box
Suitable for freeze protection applications and temperature maintenance in pipes and tanks.
EKL Light - Junction Box
Polyester enclosures have proven their worth in many industrial plants. They offer safe protection even when they are used under extremely unfavorable conditions, on exposure to aggressive chemical media or hard mechanical conditions. The inside base of the enclosure has at its sides, threaded bushings for the fastening of mounting rails or panels. The enclosure is mounted by means of insulated screws outside of the lid seal.
- Temperature-resistant
- Flame-retardant
- Absolutely corrosion-proof
- Seawater-proof
Application Areas:
- Safe protection of electrical connections in industrial facilities.
- Insulation of connection points in corrosive and aggressive chemical environments.
- Use of junction boxes for heating systems in oil, gas, and petrochemical plants.
- Protection of seawater-resistant connection points in maritime and offshore applications.
- High-temperature-resistant applications in refineries and power plants.
- Secure installation of cable connections in industrial areas with harsh mechanical conditions.
- Safe usage in explosive atmospheres (Ex-proof zones) due to its flame-retardant properties.
- Hygienic and durable enclosure solutions for the food and pharmaceutical industries.
EKL Light Junction Box
| TECHNICAL DATA | |
| Material | glass-fiber reinforced polyester, EN 50014 surface resistance >1012 Ω |
| Colour | RAL 7000/RAL 7001, grey |
| Mechanical resistance | impact energy 7 Nm |
| Protection class according to EN 60529/IEC 60529 | IP 66/IP 67 |
| Cable gland | IP 65 |
| Gland size | 7 to 12/17 mm |
| Supply voltage | 500 V |
| Standard seal |
EPDM -20 °C to +100 °C Silikon -55 °C to +100 °C |
| Lid screws | Stainless steel cross slot (+ -) |
