ACCESSORIES AND INSTALLATION PRODUCTS

ELAK-5.8

122 x 120 x 90 mm, polyester, grey, IP 65, up to 2 heating cables, screw connection 2x M25 1x M16,k borehole 1x M16, Ambient temperature -70 °C to + 130 °C, Suitable for All Pt 100
temperature tracers.

Application:

• Industrial Heating Systems Connections
• Heat Tracing Systems Connections (with Pt 100 Sensors)
• Freeze Protection Systems Connections
• Pipeline Heating Systems Connections
• Tank Heating Systems Connections
• Valve Heating Systems Connections
• Connections for Up to 2 Heating Cables
• Applications Requiring 2x M25 and 1x M16 Screw Connections
• Applications Requiring 1x M16 K-Drill Connection
• Applications Requiring Ambient Temperature Between -70 °C and +130 °C
• Applications Requiring IP 65 Protection Class
• Applications Compatible with All Pt 100 Temperature Monitors
• Industrial Plants Cable Connections
• Chemical Plants Cable Connections
• Petrochemical Plants Cable Connections
• Oil and Gas Industry Cable Connections
• Power Plants Cable Connections
• Food Processing Plants Cable Connections
• Pharmaceutical Production Plants Cable Connections
• Cold Storage Cable Connections
• Fire Suppression Systems Cable Connections
• HVAC Systems Cable Connections
• Applications Requiring Pt 100 Sensor Connection

ELAK-R-1

Ø 150 mm, height 125 mm, thermoplastic, for star point, Ambient temperature -45 °C to + 50 °C, Suitable for ELKM-AG-N, AG-L.

Application:

• Industrial Heating Systems Star Point Connections
• Heat Tracing Systems Star Point Connections
• Freeze Protection Systems Star Point Connections
• Pipeline Heating Systems Star Point Connections
• Tank Heating Systems Star Point Connections
• Valve Heating Systems Star Point Connections
• ELKM-AG-N Cable Connections
• ELKM-AG-L Cable Connections
• Cable Connections Requiring Star Point
• Applications Requiring Ambient Temperature Between -45 °C and +50 °C
• Industrial Plants Cable Connections
• Chemical Plants Cable Connections
• Petrochemical Plants Cable Connections
• Oil and Gas Industry Cable Connections
• Power Plants Cable Connections
• Food Processing Plants Cable Connections
• Pharmaceutical Production Plants Cable Connections
• Cold Storage Cable Connections
• Fire Suppression Systems Cable Connections
• HVAC Systems Cable Connections
• Applications Requiring Thermoplastic Material

ELAK-R-2

Ø 150 mm, height 125 mm, thermoplastic, Ambient temperature -45 °C to + 50 °C, Suitable for ELKM-AG-N, AG-L.

Application:

• Industrial Heating Systems Connections
• Heat Tracing Systems Connections
• Freeze Protection Systems Connections
• Pipeline Heating Systems Connections
• Tank Heating Systems Connections
• Valve Heating Systems Connections
• ELKM-AG-N Cable Connections
• ELKM-AG-L Cable Connections
• Applications Requiring Ambient Temperature Between -45 °C and +50 °C
• Industrial Plants Cable Connections
• Chemical Plants Cable Connections
• Petrochemical Plants Cable Connections
• Oil and Gas Industry Cable Connections
• Power Plants Cable Connections
• Food Processing Plants Cable Connections
• Pharmaceutical Production Plants Cable Connections
• Cold Storage Cable Connections
• Fire Suppression Systems Cable Connections
• HVAC Systems Cable Connections
• Applications Requiring Thermoplastic Material
• Applications Requiring Distribution Box
• Cable Connections Not Requiring Star Point Connection

ELAK-R-8

Ø 150 mm, height 125 mm, for 1 to 2 Pt100s, 2-4 wires, up to 2 sensor connections max. 2.5 mm², Ambient temperature -45 °C to + 50 °C.

Application:

• Industrial Temperature Measurement Systems
• Heat Tracing Systems Sensor Connections
• Process Control Systems Sensor Connections
• Furnace and Oven Temperature Measurement Systems
• Tank and Pipeline Temperature Measurement Systems
• Chemical Plants Temperature Measurement Systems
• Petrochemical Plants Temperature Measurement Systems
• Oil and Gas Industry Temperature Measurement Systems
• Power Plants Temperature Measurement Systems
• Food Processing Plants Temperature Measurement Systems
• Pharmaceutical Production Plants Temperature Measurement Systems
• HVAC Systems Temperature Measurement Systems
• Cold Storage Temperature Measurement Systems
• Applications Requiring 1 to 2 Pt100 Sensor Connections
• Applications Requiring 2-4 Wire Sensor Connections
• Applications Requiring Sensor Connections Up to 2.5 mm²
• Applications Requiring Ambient Temperature Between -45 °C and +50 °C
• Applications Requiring High Precision Temperature Measurement
• Applications Requiring Sensor Distribution Box

ELAK-RS-Pt

incl. mounting base, Ø 150 mm, Height 125 mm, thermoplastic, connection of 1 double Pt100, 1 sensor line, insulation thickness max. 100 mm.

Application:

• Industrial Temperature Measurement Systems
• Heat Tracing Systems Sensor Connections
• Process Control Systems Sensor Connections
• Furnace and Oven Temperature Measurement Systems
• Tank and Pipeline Temperature Measurement Systems
• Chemical Plants Temperature Measurement Systems
• Petrochemical Plants Temperature Measurement Systems
• Oil and Gas Industry Temperature Measurement Systems
• Power Plants Temperature Measurement Systems
• Food Processing Plants Temperature Measurement Systems
• Pharmaceutical Production Plants Temperature Measurement Systems
• HVAC Systems Temperature Measurement Systems
• Cold Storage Temperature Measurement Systems
• Applications Requiring 1 Pair of Pt100 Sensor Connections
• Applications Requiring 1 Sensor Line Connection
• Applications Requiring Insulation Thickness Up to 100 mm
• Applications Requiring High Precision Temperature Measurement
• Applications Requiring Sensor Distribution Box
• Applications Requiring Mounting Base

ELAK-Ex-4.11

122 x 120 x 90 mm, polyester, IP66, 1 heating cable, 1 supply line

Application:

• Heating Systems Connections in Explosive Atmospheres
• Heat Tracing Systems Connections in Hazardous Areas
• Cable Connections in Chemical Plants
• Cable Connections in Petrochemical Plants
• Cable Connections on Oil and Gas Platforms
• Cable Connections in Refineries
• Cable Connections in Hazardous Material Warehouses
• Industrial Process Heating Systems Connections (Explosive Atmospheres)
• Applications Requiring 1 Heating Cable and 1 Supply Line Connection
• Applications Requiring IP66 Protection Class
• Applications Requiring Polyester Material

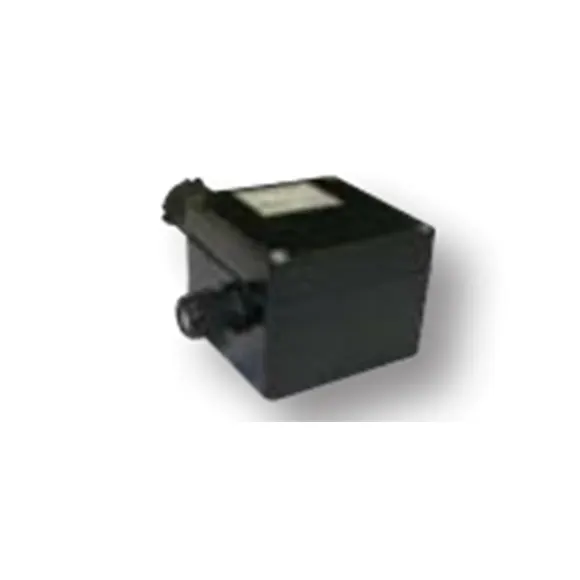

ELAK-Ex-4.12

Suitable connection:

• 2 Trace heater ELK-AG
• 1 Power cable

The junction box ELAK-Ex-4.12 in conventional design is suitable for use in potentially explosive atmosphere in accordance with Ex-guidelines. It is easy to install and promises easy maintenance. The junction box can be wall-mounted and can also be installed on pipes with a mounting bracket or variable mounting bracket.

The junction box ELAK-Ex-4.12 is fast and easy to install thanks to its conventional design and offers easy maintenance. The design allows for different configurations as well as operation in explosive atmospheres. Suitable for wall mounting and can also be installed in pipes with the aid of a mounting fixture.

Applications:

• Potentially explosive areas
• Power plants
• Chemical industry
• Petrochemical industry
• Oil and gas industry
• Pharmaceutical industry
• Plastics industry

Advantages:

• No static charging
• Housing: Polyester
• Suitable for wall mounting

Suitable connection:

• 2 heating cable ELK-AG serial resistance heating cable
• 1 supply line

Application:

• Heating Systems Connections in Explosive Atmospheres
• Heat Tracing Systems Connections in Hazardous Areas
• Cable Connections in Chemical Plants
• Cable Connections in Petrochemical Plants
• Cable Connections on Oil and Gas Platforms
• Cable Connections in Refineries
• Cable Connections in Hazardous Material Warehouses
• Industrial Process Heating Systems Connections (Explosive Atmospheres)
• Applications Requiring 2 Heating Cables (ELK-AG) and 1 Supply Line Connection
• Applications Requiring Easy Installation and Maintenance
• Applications Requiring Wall or Pipe Mounting
• Power Plants Cable Connections
• Pharmaceutical Industry Cable Connections
• Plastics Industry Cable Connections

ELAK-Ex-4.13

The junction box ELAK-Ex-4.13 is fast and easy to install thanks to its conventional design and offers easy maintenance. The design allows for different configurations as well as operation in explosive atmospheres. Suitable for wall mounting and can also be installed in pipes with the aid of a mounting fixture.

Suitable connection:

• 3 Trace heater ELK-AG, star connection
• 1 Power cable

The junction box ELAK-Ex-4.13 in conventional design is suitable for use in potentially explosive atmosphere in accordance with Ex-guidelines. It is easy to install and promises easy maintenance. The junction box can be wall-mounted and can also be installed on pipes with a mounting bracket or variable mounting bracket.

Applications:

• Potentially explosive areas
• Power plants
• Chemical industry
• Petrochemical industry
• Oil and gas industry
• Pharmaceutical industry
• Plastics industry

Advantages:

• No static charging
• Housing: Polyester
• Suitable for wall mounting

Suitable connection:

• 3 heating cables ELK-AG Serial resistance heating cable, star point
• 1 supply line

ELAK-Ex-R1

The innovative junction box ELAK-Ex-R is suitable for use in potentially explosive atmosphere in accordance with Ex-guidelines 94/9/CE (ATEX 95). Thanks to its exceptional shape it provides a number of advantages. Due to the form of the box, for instance, it is not necessary to strongly bend the inserted cable thereby avoiding cable damage.
A safety lock, with appropriate tool included, prevents the cover from moving. Additional features permitting the attachment of sign plates facilitate easy identification of heating circuits in complex systems. Suited for wall-mounting.

The innovative junction box ELAK-Ex-R is suitable for use in areas subject to explosion hazard and offers many advantages. The cable that is led in does not have to be bent sharply thanks to the shape of the box. This protects the cable against damage. A safety screw connection with enclosed tool prevents the cover from moving. Additional fastening possibilities for identification plates make it possible to label heating circuits reliably in complex systems. Suitable for wall mounting.

Applications:

• Potentially explosive areas
• Power plants
• Chemical industry
• Petrochemical industry
• Oil and gas industry
• Pharmaceutical industry
• Plastics industry

Advantages:

• No static charging
• Snap lock makes it possible to close the cover without using a tool
• Identification plate can be provided by the customer

Suitable connection:

• Up to 3 heating cables ELSR or ELP
• Up to 3 heating cables ELKM-AG
• Up to 2 PT 100
• 1 supply line

The innovative junction box ELAK-Ex-R is suitable for use in potentially explosive atmosphere in accordance with Ex-guidelines 94/9/CE (ATEX 95). Thanks to its exceptional shape it provides a number of advantages. Due to the form of the box, for instance, it is not necessary to strongly bend the inserted cable thereby avoiding cable damage.
A safety lock, with appropriate tool included, prevents the cover from moving. Additional features permitting the attachment of sign plates facilitate easy identification of heating circuits in complex systems. Suited for wall-mounting.

The innovative junction box ELAK-Ex-R is suitable for use in areas subject to explosion hazard and offers many advantages. The cable that is led in does not have to be bent sharply thanks to the shape of the box. This protects the cable against damage. A safety screw connection with enclosed tool prevents the cover from moving. Additional fastening possibilities for identification plates make it possible to label heating circuits reliably in complex systems. Suitable for wall mounting.

Applications:

• Potentially explosive areas
• Power plants
• Chemical industry
• Petrochemical industry
• Oil and gas industry
• Pharmaceutical industry
• Plastics industry

Advantages:

• No static charging
• Snap lock makes it possible to close the cover without using a tool
• Identification plate can be provided by the customer

Suitable connection:

• Up to 3 heating cables ELSR or ELP
• Up to 3 heating cables ELKM-AG
• Up to 2 PT 100
• 1 supply line

ELAK-Ex-R4

The innovative junction box ELAK-Ex-R is suitable for use in potentially explosive atmosphere in accordance with Ex-guidelines 94/9/CE (ATEX 95). Thanks to its exceptional shape it provides a number of advantages. Due to the form of the box, for instance, it is not necessary to strongly bend the inserted cable thereby avoiding cable damage.
A safety lock, with appropriate tool included, prevents the cover from moving. Additional features permitting the attachment of sign plates facilitate easy identification of heating circuits in complex systems. Suited for wall-mounting.

The innovative junction box ELAK-Ex-R is suitable for use in areas subject to explosion hazard and offers many advantages. The cable that is led in does not have to be bent sharply thanks to the shape of the box. This protects the cable against damage. A safety screw connection with enclosed tool prevents the cover from moving. Additional fastening possibilities for identification plates make it possible to label heating circuits reliably in complex systems. Suitable for wall mounting.

Applications:

• Potentially explosive areas
• Power plants
• Chemical industry
• Petrochemical industry
• Oil and gas industry
• Pharmaceutical industry
• Plastics industry

Advantages:

• No static charging
• Snap lock makes it possible to close the cover without using a tool
• Identification plate can be provided by the customer

Suitable connection:

• Up to 3 heating cables ELSR or ELP
• Up to 3 heating cables ELKM-AG
• Up to 2 PT 100
• 1 supply line

ELAK-Ex-R8 - Junction Box

The innovative junction box ELAK-Ex-R is suitable for use in potentially explosive atmosphere in accordance with Ex-guidelines 94/9/CE (ATEX 95). Thanks to its exceptional shape it provides a number of advantages. Due to the form of the box, for instance, it is not necessary to strongly bend the inserted cable thereby avoiding cable damage.
A safety lock, with appropriate tool included, prevents the cover from moving. Additional features permitting the attachment of sign plates facilitate easy identification of heating circuits in complex systems. Suited for wall-mounting.

The innovative junction box ELAK-Ex-R is suitable for use in areas subject to explosion hazard and offers many advantages. The cable that is led in does not have to be bent sharply thanks to the shape of the box. This protects the cable against damage. A safety screw connection with enclosed tool prevents the cover from moving. Additional fastening possibilities for identification plates make it possible to label heating circuits reliably in complex systems. Suitable for wall mounting.

Applications:

• Potentially explosive areas
• Power plants
• Chemical industry
• Petrochemical industry
• Oil and gas industry
• Pharmaceutical industry
• Plastics industry

Advantages:

• No static charging
• Snap lock makes it possible to close the cover without using a tool
• Identification plate can be provided by the customer

Suitable connection:

• Up to 3 heating cables ELSR or ELP
• Up to 3 heating cables ELKM-AG
• Up to 2 PT 100
• 1 supply line
