ACCESSORIES AND INSTALLATION PRODUCTS

ELAK-Ex-2.00

Suitable connection:

• 1 Trace heater ELSR, ELK-AG, ELK-MI or ELK-MI Twin
• 1 Power cable

The junction box ELAK-Ex-2.00 in conventional design is suitable for use in potentially explosive atmosphere in accordance with Ex-guidelines. It is easy to install and promises easy maintenance. The junction box can be wall-mounted and can also be installed on pipes with a mounting bracket or variable mounting bracket.

Application Areas:

• Oil and gas industry (refineries, platforms)
• Chemical industry (chemical plants)
• Mining
• Paint industry
• Flour and sugar factories
• High temperature furnaces
• Heat treatment plants
• Hazardous material storage
• Extruder Heating (in hazardous areas)
• Hot press applications (in hazardous areas)
• Cable junction boxes (in hazardous areas)
• Heating cable connections (in hazardous areas)
• Sensor connections (in hazardous areas)
• Lighting systems (in hazardous areas)
• Distribution boxes (in hazardous areas)

ELVB-MI-VA-S

Application Areas:

• Industrial furnaces and dryers
• Chemical processes
• Food processing
• Pharmaceutical production
• Power plants
• Metal processing
• Automotive industry
• Aerospace industry
• Nuclear power plants
• Extruder Heating
• Hot press applications
• High temperature pipelines
• Tank heating

ELVB-MI-VA-T

Application Areas:

• Industrial furnaces and dryers
• Chemical processes
• Food processing
• Pharmaceutical production
• Power plants
• Metal processing
• Automotive industry
• Aerospace industry
• Nuclear power plants
• Extruder Heating
• Hot press applications
• High temperature pipelines
• Tank heating
• Steam lines
• Heat treatment furnaces
• High temperature reactors.

ELVB-MI-AY825- T

Features:

• Mineral insulated heating cable
• High temperature resistance
• Durable and reliable construction
• Suitable for various industrial environments
• Customizable for specific applications
• High thermal efficiency
• Fast response time

Application Areas:

• Industrial furnaces and dryers
• Chemical processes
• Food processing
• Pharmaceutical production
• Power plants
• Metal processing
• Automotive industry
• Aerospace industry
• Nuclear power plants
• Extruder Heating
• Hot press applications
• High temperature pipelines
• Tank heating
• Steam lines
• Heat treatment furnaces
• High temperature reactors
• High temperature valves
• High temperature sensors
• Heating applications requiring fast response

ELAK-6-SP

The junction box ELAK-6-SP is fast and easy to install and maintain thanks to its conventional design. The design allows for different configurations. The junction box ELAK-6-SP is suitable for wall mounting but can also be installed on pipes with the aid of a mounting fixture.

Features:

• Connection box designed for industrial applications
• High temperature resistance
• Durable and reliable construction
• Easy installation
• Multiple connection options for various cable entries

Application Areas:

• Industrial furnaces and dryers
• Chemical processes
• Food processing
• Pharmaceutical production
• Power plants
• Metal processing
• Automotive industry
• Aerospace industry
• Nuclear power plants
• Extruder Heating
• Hot press applications
• High temperature pipelines
• Tank heating
• Steam lines
• Heat treatment furnaces
• High temperature reactors
• Cable junction boxes
• Heating cable connections
• Sensor connections

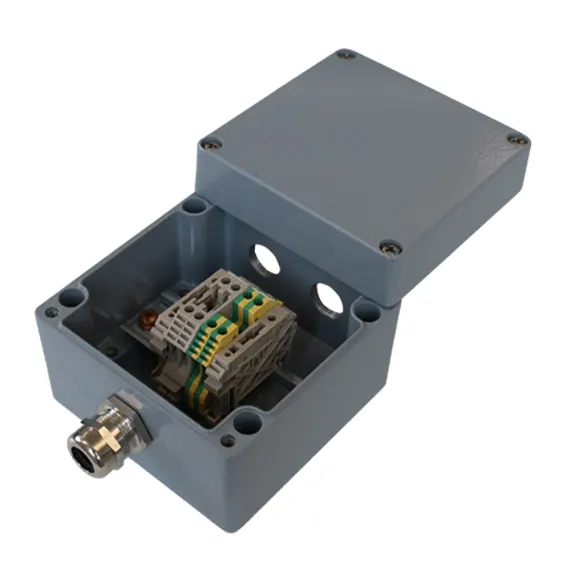

ELAK-3-SP

The junction box ELAK-3-SP is fast and easy to install and maintain thanks to its conventional design. The design allows for different configurations. The junction box ELAK-3-SP is suitable for wall mounting but can also be installed on pipes with the aid of a mounting fixture.

Features:

• Connection box designed for industrial applications
• High temperature resistance
• Durable and reliable construction
• Easy installation
• Multiple connection options for various cable entries
• Compact design

Application Areas:

• Industrial furnaces and dryers
• Chemical processes
• Food processing
• Pharmaceutical production
• Power plants
• Metal processing
• Automotive industry
• Aerospace industry
• Nuclear power plants
• Extruder Heating
• Hot press applications
• High temperature pipelines
• Tank heating
• Steam lines
• Heat treatment furnaces
• High temperature reactors
• Cable junction boxes
• Heating cable connections
• Sensor connections
• Small-sized systems and equipment
• Space-constrained applications

Pt100 Ex Resistance Thermometer

• Very fast response time
• Compact dimensions, compact design
• Wide temperature range

This Pt100 Ex sheathed resistance thermometer has been particularly designed for use in potentially explosive areas. As it meets the requirements of the Ex m type of protection, intrinsically safe circuits can be dispensed with. Thanks to the pliable part of the resistance thermometer, the device is excellently suitable for application areas requiring a high degree of flexibility and replaceability (e.g. chemical and power plants)

Structure The resistance thermometer is made of a 3 mm mineral insulated cable with different lengths. This light mineral insulated cable is filled with magnesium oxide. The pliable part of the resistance thermometer starts after 50 mm. Via a transition gland, the connection to a flexible supply cable is created.

Function Metals increase the electrical resistance with rising temperatures. The platinum element of the resistance thermometer has a resistance of 100 Ω at 0 °C. This characteristic is used for this type of resistance thermometers to get an image of the temperature. The resistance changes of the Pt100 Ex are converted into a temperature value and displayed by a control unit.

Application Areas:

• Oil and gas industry (refineries, platforms)
• Chemical industry (chemical plants)
• Mining
• Paint industry
• Flour and sugar factories
• High temperature furnaces (in hazardous areas)
• Heat treatment plants (in hazardous areas)
• Hazardous material storage
• Extruder Heating (in hazardous areas)
• Hot press applications (in hazardous areas)
• Heating cable applications (in hazardous areas)
• Sensor connections (in hazardous areas)
• All applications requiring temperature measurement in hazardous areas.

ELTF-PT.3

Pt100, 2-wire, 5 x 50 mm, 3 m PTFE cable, Suitable for ELKM-A, -AS, AE.

Application:

• Industrial Heating Systems Temperature Measurement
• Heat Tracing Systems Temperature Measurement
• Process Control Systems Temperature Measurement
• Furnace and Oven Temperature Measurement
• Tank and Pipeline Temperature Measurement
• Chemical Plants Temperature Measurement
• Petrochemical Plants Temperature Measurement
• Oil and Gas Industry Temperature Measurement
• Power Plants Temperature Measurement
• Food Processing Plants Temperature Measurement
• Pharmaceutical Production Plants Temperature Measurement
• HVAC Systems Temperature Measurement
• Cold Storage Temperature Measurement
• Temperature Measurement with ELKM-A Cable Connections
• Temperature Measurement with ELKM-AS Cable Connections
• Temperature Measurement with ELKM-AE Cable Connections
• Applications Requiring High Precision Temperature Measurement
• Applications Requiring PTFE Cable

Junction Boxes For Pt100 Ex

The Pt100 Ex junction boxes allow one or more two-wire or three-wire Pt100 resistance thermometers to be connected to the signal line. The enclosures have the appropriate terminals and the required cable glands. Aluminium junction boxes are available upon request.

Application Areas:

• Oil and gas industry (refineries, platforms)
• Chemical industry (chemical plants)
• Mining
• Paint industry
• Flour and sugar factories
• High temperature furnaces (in hazardous areas)
• Heat treatment plants (in hazardous areas)
• Hazardous material storage
• Extruder Heating (in hazardous areas)
• Hot press applications (in hazardous areas)
• Heating cable applications (in hazardous areas)
• Sensor connections (in hazardous areas)
• All applications requiring Pt100 sensor connections in hazardous areas.

Junction Boxes For Pt100 M

The polyester junction boxes allow one or more two-wire or three-wire Pt100 M resistance thermometers to be connected to the signal line. The enclosures have the appropriate terminals and the required cable glands. Aluminium junction boxes are available upon request.

Application Areas:

• Industrial furnaces and dryers
• Chemical processes
• Food processing
• Pharmaceutical production
• Power plants
• Metal processing
• Automotive industry
• Aerospace industry
• Nuclear power plants
• Extruder Heating
• Hot press applications
• High temperature pipelines
• Tank heating
• Steam lines
• Heat treatment furnaces
• High temperature reactors
• All industrial applications requiring Pt100 sensor connections.

ELTF-PT.3.1

Pt100, 3-wire, 5 x 50 mm, 3 m PFA cable

Application:

• Industrial Process Control
• Applications Requiring High Precision Temperature Measurement
• Chemical Plants Temperature Measurement
• Petrochemical Plants Temperature Measurement
• Power Plants Temperature Measurement
• Food Processing Plants Temperature Measurement
• Pharmaceutical Production Plants Temperature Measurement
• HVAC Systems Temperature Measurement
• Cold Storage Temperature Measurement
• Furnace and Oven Temperature Measurement
• Tank and Pipeline Temperature Measurement
• High Temperature Environments
• Corrosion Resistant Environments
• Applications Requiring PFA Cable
• Applications Requiring 3-Wire Connection
• Laboratory Applications
• Calibration Applications

ELTF-PT.61

The eltherm Pt100 temperature tracer and thermocouples types K & J are suitable for various applications and temperatures. All temperature tracers are an optimum and perfect addition to eltherm temperature controllers and temperature limiters. Our products have a long service life, even under demanding application conditions. ELTF-PTEx temperature tracers are suitable for use in potentially explosive areas.

Applications:

• Potentially explosive areas
• Power plants
• Chemical industry
• Pharmaceutical industry
• Process temperatures to 1000°C
• Building technology

Advantages:

• Easy & reliable handling
• Optimally coordinated with eltherm controller program
• High temperature resistance

Approvals:

• II 2G Ex e IIC T6...T2
• II 2D Ex tD A21 IP65 TX
• EX e IIC T6...T2 Gb
• Ex tb III C TX Db
• IBExU04ATEX1004X
• IECEx IBE 14.0069X
• CML 21UKEX3953X
