ELAK-Ex-R1

Brand: ELTHERM Category: EX PROOF HEAT TRACING EQUIPMENT

Ex Proof Heat Tracing Equipment - ELAK-Ex-R1

Rated 5.00 out of 5 based on 1 customer rating

It is used in potentially explosive areas, Power plants, Chemical industry, Petrochemical industry, Oil and gas industry, Pharmaceutical industry and Plastic industry.

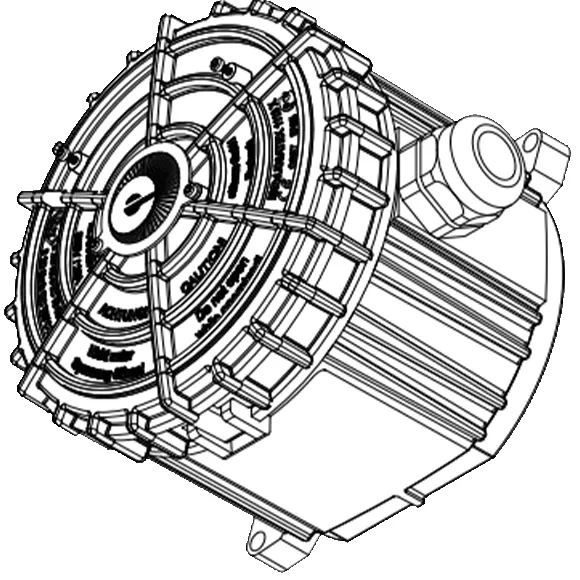

The innovative junction box ELAK-Ex-R is suitable for use in potentially explosive atmosphere in accordance with Ex-guidelines 94/9/CE (ATEX 95). Thanks to its exceptional shape it provides a number of advantages. Due to the form of the box, for instance, it is not necessary to strongly bend the inserted cable thereby avoiding cable damage.
A safety lock, with appropriate tool included, prevents the cover from moving. Additional features permitting the attachment of sign plates facilitate easy identification of heating circuits in complex systems. Suited for wall-mounting.

The innovative junction box ELAK-Ex-R is suitable for use in areas subject to explosion hazard and offers many advantages. The cable that is led in does not have to be bent sharply thanks to the shape of the box. This protects the cable against damage. A safety screw connection with enclosed tool prevents the cover from moving. Additional fastening possibilities for identification plates make it possible to label heating circuits reliably in complex systems. Suitable for wall mounting.

Applications:

Potentially explosive areas
Power plants
Chemical industry
Petrochemical industry
Oil and gas industry
Pharmaceutical industry
Plastics industry

Advantages:

No static charging
Snap lock makes it possible to close the cover without using a tool
Identification plate can be provided by the customer

Suitable connection:

Up to 3 heating cables ELSR or ELP
Up to 3 heating cables ELKM-AG
Up to 2 PT 100
1 supply line

Product Description

ELAK-Ex-R1

TECHNICAL SPECIFICATIONS
Operating voltage(max.)	550 V AC
Nominal current	Max 28 A
Ambient Temperature	-40°C to +50°C
Connection cross-section	Supply line max. 6 mm2, (ELAK-Ex-R max. 2.5mm²)
Housing material	Polymide, black

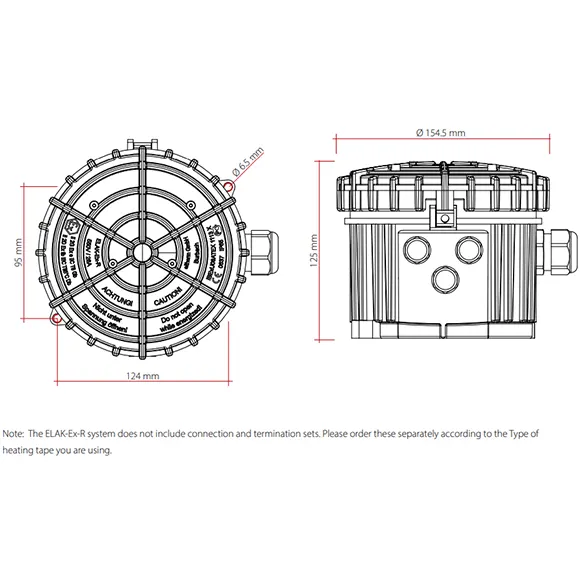

Dimensions	(approx.) Ø154.5mm, height 125mm
Protection	IP 65
Interface immunity	7 joules
Mounting	Wall mounting
Weight	approx.0.7kg
