Type: SV

Brand: ELTHERM Category: RAIL SWITCH HEATING PRODUCTS

Rail Switch Heating Products - Type: SV

Rated 5.00 out of 5 based on 1 customer rating

SV Same flat stainless tubular heating element design, but slightly wider. The SV design is made where there is a demand for extra power. Up to 1000 Watt per meter.

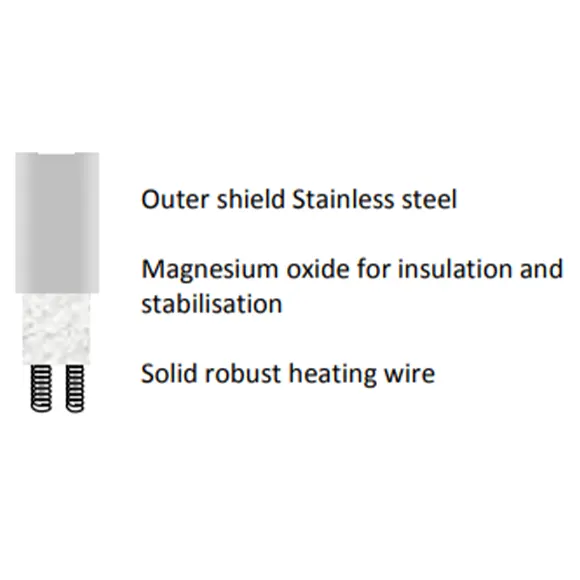

The heating wire is a solid wire wounded in a spiral. The spiral is completely encapsulated in highly compressed magnesium oxide. The heating element has been through a thermo cycle to reduce the fragility. The element can be bended on-site or can be delivered pre bended.

SV can be delivered with multi-zone power output. E.g. first half of the elements makes 650 W/m and the rest makes 970 W/m. This Has been delivered for switch points where higher power was wanted at the toe of the point.

The SV heating element has the following key features:
• Resistant to mechanical chocks and vibrations
Long lifetime – good return on investment
• Multi zone heating
Increase the efficiency and saves energy
• High Power
High heating capacity for very challenging winter weather conditions
• Corrosion free outer jacket
Stainless steel 316, 321 or MONEL 400
• Completely sealed connection
No risk of malfunction due to moisture and termination corrosion problems.
• Flexible length and shape
Made to fit the switch best possible
• Small physical size
Will fit narrow places in switch point

Applications:

Railway switch points heating (high power required)
Rail system switch points heating (high power required)
Outdoor switch points heating (high power required)
Switch points heating in cold weather conditions (high power required)
Switch points heating in humid environments (high power required)
Industrial switch points heating (high power required)
Hazardous area switch points heating (high power required)
Heating applications in vibrating environments (high power required)
Heating applications in environments exposed to mechanical impacts (high power required)
Corrosion-resistant heating applications (high power required)
Heating applications in confined spaces (high power required)
Applications requiring multi-zone heating

Product Description

Type: SV

SPECIFICATIONS
Type	SV
Output Power	Up To 1000 Watt/Meter
Supply Voltage	40 to 750 V
Cold Zone 1	Typical 150 mm
Cold Zone 2	Typical 20 mm
PYSICAL SIZE
Heating Element	13 x 5.5 mm
Connection Head	OD 26 mm Length 75 mm
Heating Element Length	Up to 7500 mm
Cable Length	To Be Specified
Cable Connection	Parmanent Molded
Cable Type	PUR H07BQ-F
Protection Class	IP 67
Electrical Isolation	>10 M Ohm
Outer Jacket	Stainless Steel AISI 316L MONEL 400

Type: SV

Applications:

Railway switch points heating (high power required)
Rail system switch points heating (high power required)
Outdoor switch points heating (high power required)
Switch points heating in cold weather conditions (high power required)
Switch points heating in humid environments (high power required)
Industrial switch points heating (high power required)
Hazardous area switch points heating (high power required)
Heating applications in vibrating environments (high power required)
Heating applications in environments exposed to mechanical impacts (high power required)
Corrosion-resistant heating applications (high power required)
Heating applications in confined spaces (high power required)
Applications requiring multi-zone heating
