Type: SSV

Brand: ELTHERM Category: RAIL SWITCH HEATING PRODUCTS

Rail Switch Heating Products - Type: SSV

Rated 5.00 out of 5 based on 1 customer rating

SSV Type Heating Element

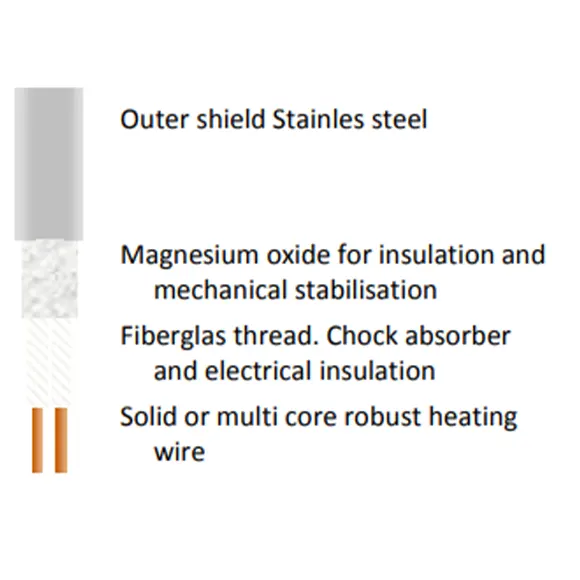

SSV type heating element is our best selling heating element for railway applications. The design of this flat stainless steel tubular heating element is made specially for the tough railway environment. The outer shield withstand corrosion and the inner construction is extremely resistant to heavy vibrations and mechanical shocks. The soft flexible design of the heating element makes it possible to bend the element for best fit on location.
The heating element has the following key features:
• Extreme resistant to mechanical chocks and vibrations
Long lifetime – good return on investment
• Dual electrical insulation
Secure no electrical shorts to outer shield/rail
• Energy efficient shape
Flat surface to maximize heat transfer to the rail
• Corrosion free outer jacket
Stainless steel AISI 316, 321 or MONEL 400
• Completely sealed connection
No risk of malfunction due to moisture and termination corrosion problems.
• Flexible length and shape
Made to fit the switch best possible
• Small physical size
Will fit narrow places in switch point

Applications:

Railway switch points heating
Rail system switch points heating
Outdoor switch points heating
Switch points heating in cold weather conditions
Switch points heating in humid environments
Industrial switch points heating
Hazardous area switch points heating
Heating applications in vibrating environments
Heating applications in environments exposed to mechanical impacts
Corrosion-resistant heating applications
Heating applications in confined spaces

Product Description

SPECIFICATIONS
Type	SSV
Output Power	Up To 350 Watt/Meter
Supply Voltage	40 to 230 V
Cold Zone 1	Typical 150 mm
Cold Zone 2	Typical 20 mm
PYSICAL SIZE
Heating Element	11 x 5.5 mm
Connection Head	OD 26 mm Length 75 mm
Heating Element Length	Up to 7500 mm
Cable Length	To Be Specified
Cable Connection	Parmanent Molded
Cable Type	PUR H07BQ-F
Protection Class	IP 67
Electrical Isolation	>10 M Ohm
Outer Jacket	Stainless Steel AISI 321
On-site Bending	Yes Down To OD 30mm
