PSB System Junction Box
Ex Proof Heat Tracing Equipment - PSB System Junction Box
Inside the junction box up to three heating circuits can be connected to the supply voltage. One cable gland size M25 for the power cable is already assembled at the junction box.
PSB System Junction Box
Features:
- Wide temperature range
- Can be combined with connection technology PLEXO, heat shrink and cold-applied technology
- Flame-retardant
- Impact-resistant
- System approval
Explosion protection:
Ex protection type
- II 2G Ex e IIC T5, T6Gb
- II 2D Ex tb IIIC T95 °C, T80 °C Db
Certification System
- KEMA 08 ATEX 0111
- IECEx KEM 09.0084X
- TC RU C-DE.ГБ06.B.00230
- CSA 1862457*
Application:
- Industrial Heating Systems Connections
- Self-Limiting Heating Tape Connections
- Heat Shrink Connections
- Cold Application Technology Connections
- Heating Systems Connections in Explosive Atmospheres
- Process Heating Applications Connections
- Freeze Protection Systems Connections
- Pipeline Heating Systems Connections
PSB System Junction Box
| TECHNICAL DATA | |
| Protection class according to EN 60529 |
seal of cover IP 65 cable gland IP 65 |
| Ambient temperature | -55 °C to +55 °C |

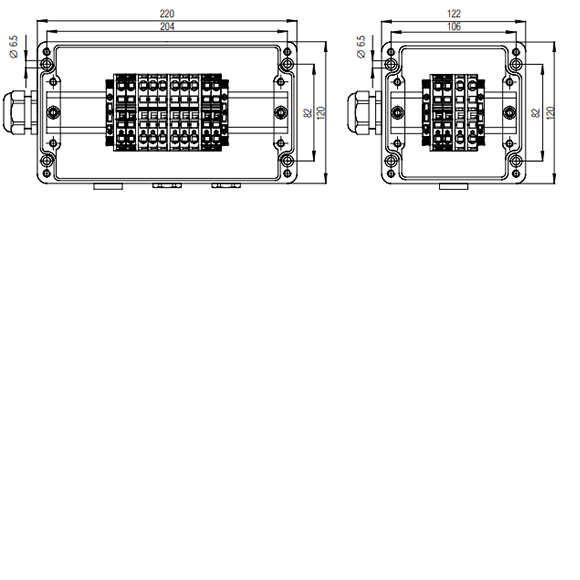

| Dimensions | see selection chart |
| Material | Polyester, glass fibre reinforce |
| Voltage | AC 254 V |
| Circuit protection | max. 32 A (dependant on the heating circuit length) |
