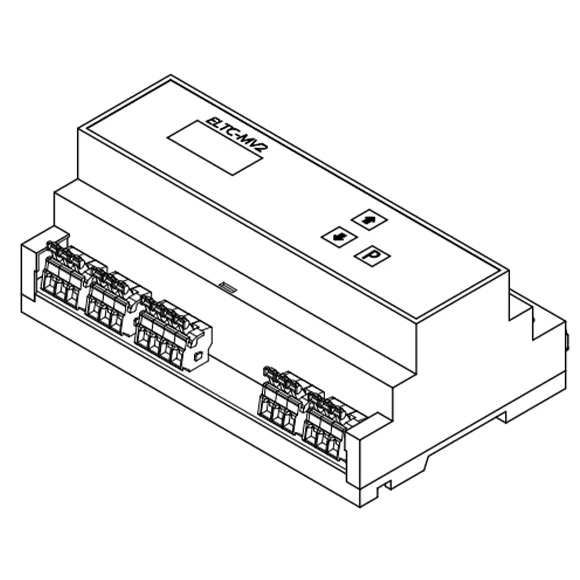

ELTC-MV2

Brand: ELTHERM Category: PIPELINE HEAT TRACING

Pipeline Heat Tracing - ELTC-MV2

Rated 5.00 out of 5 based on 1 customer rating

It is used in Power plants, Chemical industry, Petrochemical industry, Oil and gas industry, Pharmaceutical industry, Plastic industry and Process technology.

The temperature controller ELTC-MV2 Moduvise is a multi-function device with 15 control functions. Temperatures can be measured either by Pt100 in 2- & 3-wire technology, by thermocouples type J and type K, or by a standard signal. The temperature controller has four analogue inputs, two analogue outputs and three digital inputs. As a safeguard it has a message and alarm relay. There are also two RS485 interfaces, one for connecting to higher-level control systems such as the eltherm SCADA system TraceVision (Modbus protocol).

Applications:

Power plants
Chemical industry
Petrochemical industry
Oil and gas industry
Pharmaceutical industry
Plastics industry
Process technology

Advantages:

LED display
Connection to SCADA system
Multi-voltage device
Diverse control functions
Hybrid relay 20 A wear-free
Inrush current limiting
Monitoring functions

Product Description

ELTC-MV2

TECHNICAL SPECIFICATIONS
Operating voltage	100V.277VA C, +/-10%, 50/60Hz, 24 V DC, +/-5%
Max.power consumption	5.5 VA
Switching capacity relay K1	20 A resistive load max. 277VAC
Switching capacity relay K2	8 A resistive load max 250 VAC
Switching capacity relay K3	1 A resistive load max. 24 VOC
Ambient temperature	-25 °C to +55°C
Storage Temperature	-30°C to +60°C
Setpoint temperature	-50°C to +999°C (°C or °F adjustable)
Measuring range	Pt100 -60..+410°C type K 0..999°C type J 0..700°C
Switching accuracy	±1K, ±2 digits (-50...400°C)
Connection terminals	Sensor: 0.2...1.5mm² CU, other:0.1...2.5mm² CU one-wire
Interface	RS485
Sensor connection	Pt100 2- or 3-wire; thermocouples J or K; standart signal; meets requiments for operation with ELTF PTEx sensors
Display	LED,red 11mm, three-wire
Housing material	Plastic housing with foil keyboard
Hosuing dimensions	153(8.5 TE) x 93 x 59 mm (WxHxD)
Protection	IP 20
Mounting	DIN rail TS35
Weight	approx. 0.8kg
