EL-Rail Up To 150 °C
Rail Switch Heating Products - EL-Rail Up To 150 °C
The eltherm EL-Rail is a flat cable, combining six Fluoropolymer insulated series heating conductors in a silicone over-jacket.
Cable Combining a Fluoropolymer Insulated Series Heating Conductor in a Silicone Oversheath
The eltherm EL-Rail is a flat cable, combining six Fluoropolymer insulated series heating conductors in a silicone over-jacket. Superior properties of the heating system, low installation and operation costs with professional support from eltherm make the EL-Rail the first choice in rail heating applications.
Heater in accordance with the specifications of EN 62395-1, but without proctective conductor due to connection typicals in rail networks.
Benefits :
- Lowest possible number of power supply points
- Continuous heat transfer
- Resistant to moisture
- Additional protection against aggressive substances
- Suited for stock rails, switch points and power rails
- Robust design
- Optimised heat transfer
- Fast, simple assembly
- Low maintenance effort
Applications:
- Stock rail heating
- Switching point heating
- Power rail heating
- Railway network heating
- Rail systems heating
- Outdoor rail heating
- Rail heating in cold weather conditions
- Rail heating in humid environments
- Rail heating in environments with aggressive substances

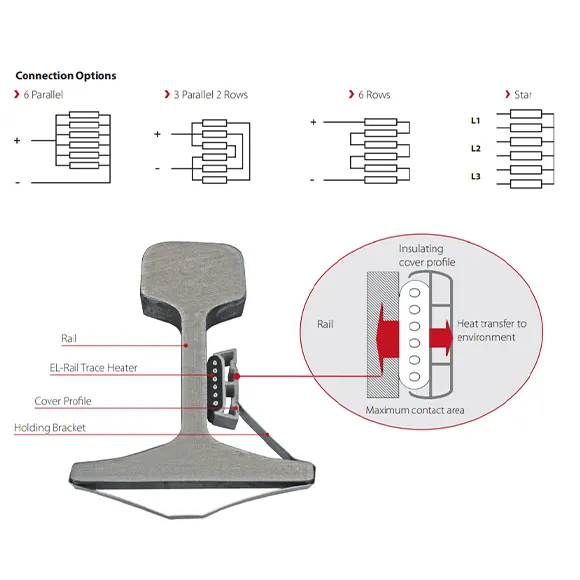

EL-Rail Up To 150 °C
| 1) Bus wire | Copper nickel plated |
| 2) Insulation | Fluoropolymer |
| 3)Outer jacket | Silicone |
| TECHNICAL INFORMATION | |
| Max. maintain temperature | 50°C |
| Max. exposure temperature (de-energized) | 150°C |
| maximum nominal voltage | 1000V |
| Minimum bending radius | 2N / 50mm |
| Power output | 50 - 150 W/m |
| Dimensions | 8 x 34 mm |
| Minimum installation temperature | -40°C |
