THERMOSTAT

BSTW II Safety Temperature Monitor And BTB II BSTB II Limiter 25 A Fail-Safe

BSTW II temperature monitors and BTB II/BSTB II temperature limiters are ON/OFF thermostats in Ex e certified polyester enclosures. In addition to the use of conventional power cables, BSTW II and BTB II/BSTW II are approved for the direct connection of self-limiting BARTEC heating circuits in the enclosure terminals. A verification of thermal safety and a further approval by any third party authority is not necessary. The benefit to the customer is obvious. Any directly connected self-limiting heating circuit considerably reduces the number of junction boxes and installation cost. BSTW II and BTB II/BSTB II monitor ambient temperatures as well as different surface temperatures. In accordance with EN 60079-30-1, BTB II and BSTB II fail-safe temperature limiters are designed to switch off and remain switched off when the preset limit temperature is reached. The restart lockout requires manual resetting directly at the device.

Application Areas:

• Industrial furnaces
• Heating systems
• Plastic processing machines
• Food processing equipment
• Chemical processes
• Laboratory equipment
• Power plants
• HVAC systems
• Extruder Heating
• Hot press applications.

FUNCTION

Any change in temperature in the sensor causes a change in the volume in the liquid-filled measuring system, which in turn results in a movement of the diaphragm membrane, which is connected to a transmission mechanism, and this opens a microswitch. If the sensor temperature exceeds the set value, the contacts 1 and 2 remain continuously open. The contacts in the BTB II/BSTB II remain continuously open until there is a manual intervention.

FEATURES

• Direct connection of self-limiting heating tapes by means of BARTEC’s cold-applied technology reduces wiring and materials
• Switching voltage up to 400 V and 2 M20 x 1.5 boreholes as standard for an enhanced operation of EKL heating circuits
• Safety cut-out temperature -45 °C or -55 °C for reliable operation, even in very cold conditions
• Minimum operating temperature -55 °C for all standard variants for use all over the world without restrictions
• Wide regulating range from -20 °C to +500 °C, depending on the switch insert

BSTW II

Fail-safe safety temperature monitor.

• Falling calibration to maintain the temperature during the process
• Turns on and off automatically whenever the temperature exceeds or drops below the setpoint value

BTB II

Fail-safe temperature limiter.

• Rising calibration to limit temperature during the process
• Switches off and remains switched off once the limit temperatures are reached

BSTB II

Fail-safe safety temperature limiter.

• The BSTB II functions in the same manner as the BTB II temperature limiter, whereby the setting range is limited here to 0 °C to 130 °C or 130 °C to 190 °C based on the temperature classes T3 and T4.

ELTC 05 Frostcontrol

The electronic temperature controller ELTC 05-Frostcontrol is designed for use as an ambient thermostat and surface thermostat with remote sensor. Cable glands and terminals are provided for power input. The unit is supplied in a weather proof plastic enclosure for wall mounting, with a grey cover. The controller should be protected from direct sunlight when used outdoors. In case of use as ambient temperature controller, the sensor cable is shortened to allow fastening of the sensor sleeve within the M12 gland. The sleeve should project by approximately 15 mm

Advantages:

• Weather proof
• Weather proof

Applications:

• Heat tracing for frost protection
• Can be used as ambient and surface thermostat
• Suitable for resistance heating lines and selfregulating heating cables

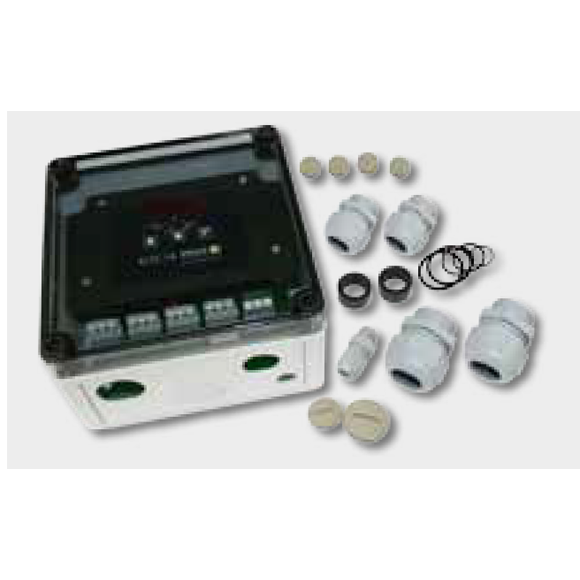

 ELTC 14

The ELTC-14 is an electronic temperature controller with digital display for wall mounting. The temperature is measured by a Pt100 sensor, processed by the microcontroller and displayed. After having evaluated the actual and preset values, the appropriate output relays are switched, depending on the configuration. Cable glands and terminals are provided for the power connection. The unit is supplied in a weather proof plastic enclosure, with a transparent cover

Advantages:

• LED display operable down to -25 °C
• Programmable 0 °C up to +390 °C
• For switching 20 A resistive load with hybridrelay
• Signaling contact (configurable to operate either as alarm or release contact, potential-free)
• Suitable for Pt100 with 2 or 3 wires
• For connection of up to 2 heating cables
• Operating voltage: 90 - 260 VAC / 50/60 Hz

Applications:

• Industrial applications
• Mechanical, electrical and plumbing (MEP)

ELTC-21

The ELTC-21 is an electronic temperature controller with digital display for top-hat rail mounting. The temperature is measured by a Pt100 sensor, processed by the microcontroller and displayed. After having evaluated the actual and preset values, the appropriate output relays are switched, depending on the configuration.

Advantages:

• LED display operable down to –25 °C
• Programmable -50 °C up to +400 °C
• For switching 16 A resistive load
• Alarm contact
• Pt100 with 2 or 3 wires

Applications:

• Industrial applications
• Mechanical, electrical and plumbing (MEP)

 ELTC-22

The ELTC-22 is an electronic temperature controller with digital display for standard rail mounting. The temperature is measured by a Pt100 sensor, processed by the microcontroller and displayed. After having evaluated the actual and preset values, the appropriate output relays are switched, depending on the configuration.

Advantages:

• LED display operable down to –25 °C
• Programmable -50 °C up to +400 °C
• Programmable -50 °C up to +400 °C
• Alarm contact
• Pt100 with 2 or 3 wires

Applications:

• Industrial applications
• Mechanical, electrical and plumbing (MEP)

ELTC Type Electronic Temperature Controller

The electronic temperature controller of type series ELTC is a controller with digital display for wall mounting. The temperature measured with a Pt100 temperature tracer is processed and displayed by a micro controller. After the actual and setpoint value are compared, the output relay is switched according to the configuration. Cable glands and terminals are installed for the electrical connection. The device is delivered in a splash-proof plastic housing with a transparent housing cover and includes accessories.

Application Areas:

• Freeze protection of pipelines and tanks
• Control of heating cables
• Cold room heating
• Floor heating
• Industrial process heating
• HVAC systems
• Extruder Heating
• Hot press applications
• Oil and gas pipelines
• Chemical plants
• Power plants
• Railway de-icing systems
• Airport runway de-icing systems
• Bridge and road de-icing systems
• Industrial furnaces and dryers
• Food processing
• Pharmaceutical production
• Metal processing
• Automotive industry
• Aerospace industry
• Nuclear power plants

ELTC-15, Digital Display and Ramp Mode

The ELTC-15 is an electronic temperature controller with digital display and rampmode functionality. It supports a 2- or 3-wire Pt100 input or thermocouple type K. After having evaluated the actual and preset values, the appropriate output relays are switched, depending on the configuration. Cable glands and terminals are provided for the power connection. The unit is supplied in a weather proof plastic enclosure, with a transparent cover.

Application Areas:

• Freeze protection of pipelines and tanks.
• Control of heating cables.
• Cold room heating.
• Floor heating.
• Industrial process heating.
• HVAC systems.
• Extruder Heating.
• Hot press applications.
• Oil and gas pipelines.
• Chemical plants.
• Power plants.
• Railway de-icing systems.
• Airport runway de-icing systems.
• Bridge and road de-icing systems.
• Industrial furnaces and dryers.
• Food processing.
• Pharmaceutical production.
• Metal processing.
• Automotive industry.
• Aerospace industry.
• Nuclear power plants.
• High temperature applications.
• Hazardous area applications.

Ex-Box REG/DIS

The REG/DIS Ex-box is used for electronic temperature recording and temperature control of electrical trace heating and is suitable for installation in potentially explosive atmospheres as well as inside or outside of buildings. The integrated control panel with display or the integrated bus interface can be used for programming and operation. The interface of the Ex box allows for central evaluation and parametrisation in the measurement control station with simultaneous decentralised use of the REG/DIS Ex box locally on the corresponding heating circuits.

Applications:

• Potentially explosive areas
• Power plants
• Chemical industry
• Petrochemical industry
• Oil and gas industry
• Pharmaceutical industry
• Plastics industry
• Sewage treatment plants

Advantages:

• Wall mounting
• Sturdy housing IP 65
• Operation in Ex areas
• High level of protection against unauthorised setpoint changes
• Increased safety through alarm messages
• Heating circuit monitoring
• Display

Approvals:

• II 2G Ex ib IIC T4
• II 2D Ex tD A21 IP65 T100°C
• IBExU04ATEX1165X

Ex-Box REG/LED

Ex-Box REG/LED: complying with latest Ex-protection directives 94/9/CE (ATEX 95) this electronic temperature controller has been designed and developed especially for its use in hazardous areas. Programming and operation is done via external Ex-Control manual control. The interface of the Ex box allows for central evaluation and parametrisation in the measurement control station with simultaneous decentralised use of the Ex box locally on the corresponding heating circuits.

Applications:

• Potentially explosive areas
• Power plants
• Chemical industry
• Petrochemical industry
• Oil and gas industry
• Pharmaceutical industry
• Plastics industry
• Sewage treatment plants

Advantages:

• Wall mounting
• Sturdy housing IP 65
• Operation in Ex areas
• Increased safety through alarm messages
• Heating circuit monitoring
• Ex-Control handheld operating device

Approvals:

• II 2G Ex ib IIC T4
• II 2D Ex tD A21 IP65 T100°C
• IBExU04ATEX1165X

Ex-box LIM/LED

The LIM/LED Ex-box is an electronic limiter for shutting down the connected electrical trace heating with lasting effect in case of overtemperature and is suitable for installation in potentially explosive atmospheres as well as inside or outside of buildings. The device is equipped with an LED in the cover. The (optional) Ex-Control handheld operating device or the integrated bus interface can be used for programming and operation. The interface of the Ex box allows for central evaluation and parametrisation in the measurement control station with simultaneous decentralised use of the Ex box locally on the corresponding heating circuits.

Applications:

• Potentially explosive areas
• Power plants
• Chemical industry
• Petrochemical industry
• Oil and gas industry
• Pharmaceutical industry
• Plastics industry
• Sewage treatment plants

Advantages:

• Wall mounting
• Sturdy housing IP 65
• Operation in Ex areas
• Increased safety through alarm messages
• Heating circuit monitoring
• Ex-Control handheld operating device

Approvals:

• II 2G Ex ib IIC T4
• II 2D Ex tD A21 IP65 T100°C
• IBExU04ATEX1165X

Ex-Control

Intrinsically safe control panel for connecting to Ex-box REG/LED, LIM/LED. The Ex control panel ensures additional safety in potentially explosive atmospheres. Unauthorised adjustments to the setpoints are prevented because the control panel is only inserted for parametrisation. The Ex-Control panel is used to parametrise and query parameters of the REG/LED Ex-box and LIM/LED Ex-box devices. Ex-Control detects the connected device and automatically activates the corresponding software. Ex-Control does not have its own power supply. It is supplied by the connected devices.

Fault indication:

• Sensor short
• Sensor cut
• Excess temperature Pt100
• Low temperature Pt100
• Internal excess temperature
• External bus fault
• Internal bus fault
• Internal hardware fault
• Supply voltage fault

Applications:

• Potentially explosive areas
• Power plants
• Chemical industry
• Petrochemical industry
• Oil and gas industry
• Pharmaceutical industry
• Plastics industry
• Sewage treatment plants

Advantages:

• Intrinsically safe control panel
• Does not have its own power supply
• Operation and programming in the Ex-area

Approvals:

• II (2) GD [Ex ib] IIC
• IBExU04ATEX1165X

Ex-TC-W Electronic Temperature Controller

The electronic temperature controller Ex-TC was developed for use in potentially explosive atmospheres. We offer different variants for different purposes, for wall mounting or for fastening onto pipelines. Choose between a temperature controller with alarm relay, a variant with RS 485 interface with Modbus protocol or a controller-limiter combination with alarm relay. The device is able to switch high nominal currents and with its round shape it ensures optimum mechanical safety. The cover closes quickly with a snap lock, making it easy to handle where it is used. All variants are suitable for use with our self-regulating heating cables (ELSR) and resistance heating cables (ELK, ELP).

Applications:

• Potentially explosive areas
• Power plants
• Chemical industry
• Petrochemical industry
• Oil and gas industry
• Pharmaceutical industry
• Plastics industry
• Process technology

Advantages:

• Three function options
• No static charging
• Cover can be closed quickly
• Easy to work with
• High mechanical safety and reliability
• Modular design
• Easy setup and easy operation

Approvals:

• II 2D Ex ib tb IIIC T85°C
• Db II 2G Ex eb ib mb IIC T6 Gb
• IBExU20ATEX1015X
• IECEx IBE 20.0002X
• UKEx CML 21UKEX3952X
