INSTRUMENT PROTECTION BOXES AND PRODUCTS

HCS Instrument Box Heater Panel

• High heating capacity
• Integrated antifreezing protection device in the connection cable
• Large, black anodized convector surface

BARTEC compact radiators are used as anti-freezing and anticondensate heaters in potentially explosive areas. Their use guarantees maximum operating safety, since temperature fluctuations are effectively prevented or the required minimum temperatures are maintained. They reliably ensure that no malfunctioning through leakage current in electrical components, or other disturbances through corrosion formation on mechanical installation parts, can occur. The radiators are ready for connection and they are maintenance-free. Places of use include switch and control cabinets, transmitter protective boxes, measuring equipment, analytical cabinets for sample preparation etc..

Function The thermostat located in the connection cable keeps the inside temperature in the required range and reliably prevents overshooting the permissible ambient temperature of the heater. In order to prevent accumulation of heat the specified fitting distances must be observed. Do not cover the fins, in order that free convection is not hindered. For applications involving higher holding temperatures, please contact us.

Construction, The radiators are fitted with a constant ohmic resistance. Through the special construction of the aluminium profile a chimney effect is produced which gives a uniform temperature distribution in the interior of enclosures and cabinets. In case of overheating, the heaters are permanently isolated from the mains supply, since the heat source is coupled with a temperature safety fuse.

Application Areas:

• Residential heating systems
• Office heating systems
• School and hospital heating systems
• Industrial facility heating systems
• Greenhouse heating systems
• Pool heating systems
• Bathroom heating systems
• Extruder Heating (liquid cooled)
• Hot press applications (liquid cooled)
• Machine cooling systems
• Electronic equipment cooling systems
• Process cooling systems.

HCM Instrument Box Heater Panel

• High heating capacity
• Integrated antifreezing protection device in the connection cable
• Large, black anodized convector surface

BARTEC compact radiators are used as anti-freezing and anticondensate heaters in potentially explosive areas. Their use guarantees maximum operating safety, since temperature fluctuations are effectively prevented or the required minimum temperatures are maintained. They reliably ensure that no malfunctioning through leakage current in electrical components, or other disturbances through corrosion formation on mechanical installation parts, can occur. The radiators are ready for connection and they are maintenance-free. Places of use include switch and control cabinets, transmitter protective boxes, measuring equipment, analytical cabinets for sample preparation etc.

Function The thermostat located in the connection cable keeps the inside temperature in the required range and reliably prevents overshooting the permissible ambient temperature of the heater. In order to prevent accumulation of heat the specified fitting distances must be observed. Do not cover the fins, in order that free convection is not hindered. For applications involving higher holding temperatures, please contact us.

Construction The radiators are fitted with a constant ohmic resistance. Through the special construction of the aluminium profile a chimney effect is produced which gives a uniform temperature distribution in the interior of enclosures and cabinets. In case of overheating, the heaters are permanently isolated from the mains supply, since the heat source is coupled with a temperature safety fuse.

Application Areas:

• Industrial facilities
• Large warehouses and workshops
• Gyms and event centers
• Airports and train stations
• Greenhouses and agricultural facilities
• Animal shelters
• Extruder Heating (high capacity)
• Hot press applications (high capacity)
• Large volume liquid heating and cooling
• Process heating and cooling
• Machine cooling systems (high capacity)
• HVAC systems (high capacity)

HCL Instrument Box Heater Panel

• High heating capacity
• Integrated antifreezing protection device in the connection cable
• Large, black anodized convector surface

BARTEC compact radiators are used as anti-freezing and anticondensate heaters in potentially explosive areas. Their use guarantees maximum operating safety, since temperature fluctuations are effectively prevented or the required minimum temperatures are maintained. They reliably ensure that no malfunctioning through leakage current in electrical components, or other disturbances through corrosion formation on mechanical installation parts, can occur. The radiators are ready for connection and they are maintenance-free. Places of use include switch and control cabinets, transmitter protective boxes, measuring equipment, analytical cabinets for sample preparation etc..

Construction The radiators are fitted with a constant ohmic resistance. Through the special construction of the aluminium profile a chimney effect is produced which gives a uniform temperature distribution in the interior of enclosures and cabinets. In case of overheating, the heaters are permanently isolated from the mains supply, since the heat source is coupled with a temperature safety fuse.

Function The thermostat located in the connection cable keeps the inside temperature in the required range and reliably prevents overshooting the permissible ambient temperature of the heater. In order to prevent accumulation of heat the specified fitting distances must be observed. Do not cover the fins, in order that free convection is not hindered. For applications involving higher holding temperatures, please contact us.

Application Areas:

• Chemical processes
• Laboratories
• Pharmaceutical production
• Food processing
• High temperature furnaces
• Heat treatment plants
• Steam lines
• Extruder Heating (in chemical environments)
• Hot press applications (in chemical environments)
• Corrosive environments
• Environments with aggressive chemicals
• High temperature reactors
• High temperature valves
• High temperature sensors

HSF Instrument Box Heater Panel

• Self-limiting characteristic
• Random mounting position
• Extremely flat design
• ATEX gas and dust application approval
• Wide rated voltage range
• Large, black, anodized convector surface

The extremely flat BARTEC HSF heater plates are mainly used in potentially explosive areas for applications, which require the maintenance of a specific temperature. The use of these heater plates guarantees a maximum degree of operational safety, as temperature fluctuations can be efficiently avoided and, yet, the required minimum temperatures can be maintained. The heater plates reliably protect electrical installations against function failures due to creepage currents and also offer protection against other failures caused by corrosion formation at mechanical system components. The radiators are ready for connection and they are maintenance-free. The application areas of these heaters comprise switch and control cabinets, transmitter protection boxes, measuring equipment, analyzer cabinets for sample preparation, and many more.

Construction The HSF heater plates are based on a PTC (positive temperature coefficient) heating element. The special design of the aluminum profile facilitates an even temperature distribution in the interior of housings and cabinets. For an optimum free convection, the fins should not be covered.

Function The PTC heating elements increase their electrical resistance as the temperatures rises. A high resistance results in a low heating output. At high temperatures, the heating capacity is reduced to a minimum heating output, which ensures that the limit temperature of the respective temperature class cannot be exceeded. Moreover, these heating elements regulate their resistance in dependence of the voltage. Therefore, the HSF heating plates can be applied in a wide supply voltage range. Should you require further information on the detailed layout of the heating capacity in holding temperature applications, please contact us.

Application Areas:

• Electronic equipment cooling
• LED lighting cooling
• Power electronics cooling
• Motor cooling
• Extruder Heating (air-cooled)
• Hot press applications (air-cooled)
• CNC machines cooling
• Welding machines cooling
• Laser cutting machines cooling
• 3D printers cooling
• Process cooling
• HVAC systems (small scale)
• Laboratory equipment cooling

MULTIBOX

A versatile and proven enclosure system designed for use in a broad range of applications. MULTIBOX enclosures are available in many sizes and designs.
The mounting elements which are inserted into the reinforced recesses provided in both enclosure halves, are designed to allow for both external mounting of the enclosure and for internal installation of C-rails providing mounting for all types of heavy instrumentation. The equipment weight is transferred directly to the mounting support.

Applications:

• Industrial automation systems
• Electrical distribution systems
• Control panels
• Telecommunication equipment
• Outdoor electronic applications
• Test and measurement equipment
• All electronic and electrical device protection applications.

Minibox Instrument Box

The MINIBOX is perfectly suited for direct mounting at the root valve. This partial enclosure has been designed specifically to protect the transmitter head and the electronics from overheating from the process medium.
This enclosure is suitable for compact instrument hook-ups and direct (close-coupled) mounting of transmitters. The enclosure can be installed vertically or horizontally. Its hinges allow clear access to the installed equipment from all sides. This compact enclosure can make installations very cost effective. Dimensions: 21.8 x 30 x 38.8 cm (21 liters).

Applications:

• Process industry
• Chemical industry
• Petrochemical industry
• Power plants
• Water and wastewater treatment plants
• All industrial environments with transmitter head and electronic component protection applications.

Unibox Instrument Box

Impulse lines can penetrate the flat bottom part of the horizontally split UNIBOX from all directions. Perfect access to the instrument when the cover is open.
The enclosures of the UNIBOX series have been designed in  two-parts with  a  straight,  horizontal  parting  line  between  the  upper  and  the lower  part.  This  type  of  construction  allows   for   maximum accessibility   during   installation   or   maintenance  of  differential pressure  transmitters  and  the  associated  manifolds.  The removable or  hinged  lid  allows  cable entries from the front, rear, sides or bottom.

The UNIBOX enclosure series is a two-part, horizontally split enclosure system specifically designed for the installation and maintenance of differential pressure transmitters and associated manifolds. This design allows optimal access to equipment and facilitates easy cable entry.

Features:

• Horizontally Split Design: A straight, horizontal separation line between the upper and lower sections.
• Maximum Accessibility: Provides excellent access during installation and maintenance of differential pressure transmitters and manifolds.
• Versatile Cable Entry: The removable or hinged cover allows cable entry from the front, rear, sides, or bottom.
• Impulse Line Entry: Impulse lines can penetrate the flat bottom of the enclosure from any direction.
• Easy Access with Open Cover: When the cover is open, full access to the device is ensured.

Function:

• Protects differential pressure transmitters and manifolds from external influences.
• Provides easy installation and maintenance.
• Organizes cable management and connections.

Application Areas:

• Process industry
• Chemical industry
• Petrochemical industry
• Power plants
• Water and wastewater treatment plants
• Differential pressure measurement systems
• Transmitter and manifold protection applications in all industrial environments

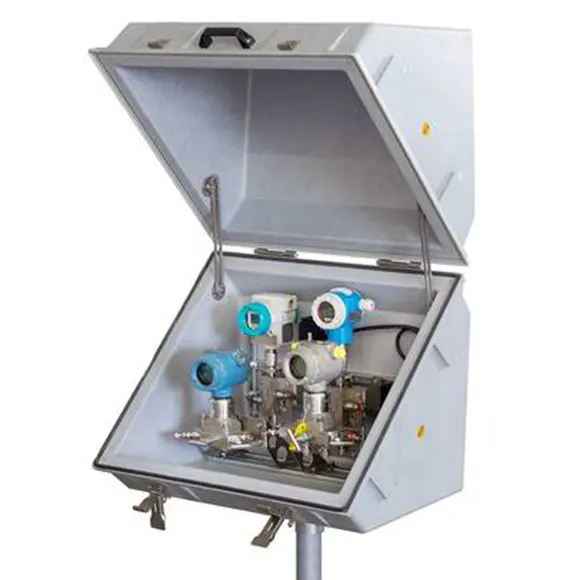

Diabox Instrument Box

The „Sealing“ Principle. The combination of a tapered tongue and groove seal and gasket ensures optimum tightness to IP 68. Simple Installation.
INTERTEC has developed a versatile mounting plate with pre-punched holes to mount manifolds and transmitters.
This two-part enclosure is split diagonally, offering clear and easy access to installed equipment for maintenance. It is suitable for rear or bottom tube/cable entry. There are six sizes from approx. 27 to 277 liters, each of which may be installed vertically or horizontally. For individual requirements, the variant DIABOX VARIO can be flexibly adapted.

Applications:

• Process industry
• Chemical industry
• Petrochemical industry
• Power plants
• Water and wastewater treatment plants
• Differential pressure measurement systems
• All industrial environments with transmitter and manifold protection applications
• Outdoor electronic applications
• Maritime applications

SUN SHADES SD 25

INTERTEC shades made of GRP have been designed to provide protection from environmental conditions such as UV-radiation, rainfall and dust acculmulation.

Applications:

• Industrial control equipment
• Electronic enclosures
• Sensors and transmitters
• Valves and manifolds
• Outdoor measurement devices
• Solar energy systems
• Telecommunication equipment

Sun Shades Sd 100

INTERTEC shades made of GRP have been designed to provide protection from environmental conditions such as UV-radiation, rainfall and dust acculmulation.

Applications:

• Industrial control equipment
• Electronic enclosures
• Sensors and transmitters
• Valves and manifolds
• Outdoor measurement devices
• Solar energy systems
• Telecommunication equipment

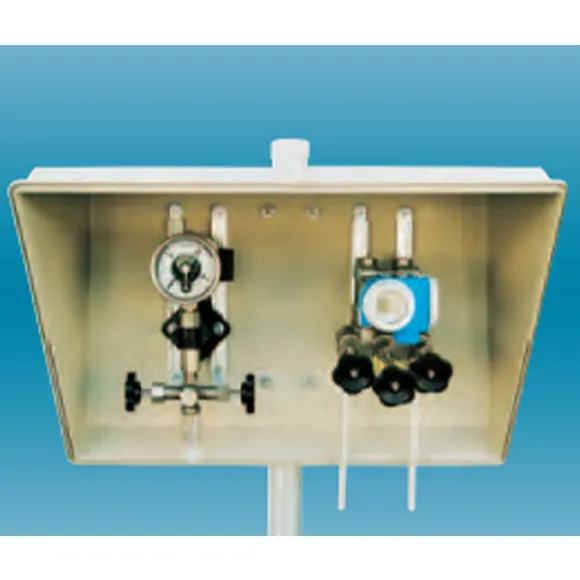

Sun Shades Diashade 137

INTERTEC shades made of GRP have been designed to provide protection from environmental conditions such as UV-radiation, rainfall and dust acculmulation.

Applications:

• Industrial control equipment
• Electronic enclosures
• Sensors and transmitters
• Valves and manifolds
• Outdoor measurement devices
• Solar energy systems
• Telecommunication equipment

Sun Shades Diashade 137

INTERTEC shades made of GRP have been designed to provide protection from environmental conditions such as UV-radiation, rainfall and dust acculmulation.

Applications:

• Industrial control equipment
• Electronic enclosures
• Sensors and transmitters
• Valves and manifolds
• Outdoor measurement devices
• Solar energy systems
• Telecommunication equipment
