HEATED HOSES

Type ELH/a Up To 250°C

Transportation of gas substances from the measurement point (i.e.chimney, connection on a heated measurement probe) to the analysis measurement unit e.g. mass spectrometer, gas chromatograph etc. Installed in a system or as transportable device (i.e. exhaust measurement unit).
Background of the application:

• Condensation is not allowed to build up in gas. This would cause sedimentation and clogging inside the analysis line, acidification drops are built.
• Differences in the gas temperatures on the way to the analyzer can cause inaccurate values
• Prevention of dropping below the dew point, especially by exhaust of gases. The dew point of the fossil fuel is between 100°C and 190°C, depending on the sulfur content.

Application:

• Coal, oil and gas heating units
• Exhaust supervision in power supply stations
• Trash burning stations
• Process gases in refineries, petro-chemical and chemical industry
• Air condition monitoring
• Motor exhaust measurement
• Freeze protection in the water analysis

Various Designs:

• ELH/a: With a fixed inner hose of PTFE
• ELH/ad:With a fixed inner hose of PTFE, steel wire braiding and RSL fittings on both sides
• ELH/ak: With a fixed copper inner hose
• ELH/ae: With a fixed stainless steel inner hose

Termination to length:

• Inner hose . . . . . . . . . .PTFE

                                                Exchangeable PTFE
                                                PTFE with braiding and RSL fittings on both sides
                                                Stainless steel
                                                Silicone
                                                Tube bundle

• Outer Sheath . . . . . . . .Polyamide braiding

                                                Corrugated piping
                                                Metal braiding

• Plugs . . . . . . . . . . . . . .Upon customer’s requirements

Type ELH/sb

This type is used in analysis applications too. With the self regulating heating cables inside, the heating power is controlled according to the ambient temperature. The bus wires of the self regulating cable provide an infinite amount of parallel switched resistances that make it possible to cut the heating tape in any desired position without developing dead or cold zones in the heating tape. When the operating temperature rises, the plastic molecular structure expands and lowers the connection between the carbon particles. The resistance rises, and the power decreases. Thus, the heating tape adjusts to every individual heating application.
This option enables the customer to terminate and cut the heated hoses to length by himself at site and fix the hose to the assembly requirements.

Applications:

• Analysis techniques (up to 120°C)
• Environmental techniques
• Freeze protection
• Analysis applications
• Industrial hose heating
• Liquid transfer heating
• Gas transfer heating
• Sampling lines heating
• Process control lines heating
• Laboratory applications heating
• Chemical transfer lines heating
• Petrochemical transfer lines heating
• Food industry transfer lines heating
• Pharmaceutical industry transfer lines heating
• Wastewater treatment plants heating

Application Examples:

• Analysis technique up to 120°C
• Environmental technique
• Frost protection

Various Designs:

• ELH/asb: With a fixed inner hose of PTFE
• ELH/adsb: With a fixed inner hose of PTFE, steel wire braiding*
• ELH/aesb: With a fixed stainless steel inner hose
• ELH/a(d)isb: Exchangeable inner hose of PTFE

Type Supplement:

• ELH/ /ohne: Standard polyamide braiding
• ELH/ /W: Corrugated piping
• ELH/ /T: Outer protection “step-proof” metal corrugated hose with PVC cover

Termination to length:

From the reel for termination at site with fixed inner hose of PTFE or factory terminated

• Termination . . . . . . . . .From customers themselves
• Inner hose . . . . . . . . . .Single inner hose

                                                Bundle of inner hoses
                                                PTFE
                                                Stainless steel

• Outer Sheath . . . . . . . .Polyamide braiding

                                                Corrugated piping
                                                Metal braiding

• Plugs . . . . . . . . . . . . . .Upon customer’s requirements

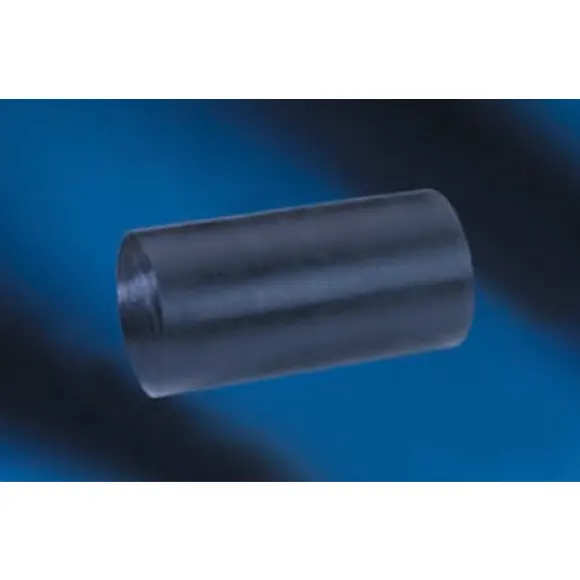

Termination Set SBA 1

Shrink Technique

Termination Set SBA 2

Silicone cap with cable entry.

Application Areas:

• Electrical panels
• Industrial facilities
• Building electrical installations
• Automotive electrical systems
• Marine electrical systems
• All types of cable termination applications

Sonlandırma Seti SBA 3

Connection Box.

Applications:

• Electrical panels
• Industrial facilities
• Building electrical installations
• Automotive electrical systems
• Maritime electrical systems
• All cable termination applications

Termination Set SBA 4

Plastic End Cap.

Applications:

• Electrical panels
• Industrial facilities
• Building electrical installations
• Automotive electrical systems
• Maritime electrical systems
• All cable termination applications

Type ELH/md/hd/shd

These types are used to heat maintain temperature and transport media without heat loss. For Example oil, fat, wax, sap, tar, paint, water, carbon dioxide, plastic, moulding material, glue, liquid food. Mostly mounted on moveable machine parts (Robots) or units.

Reason of application:

• The medium is only free-flowing at a certain temperature and achives its specific fabrication characteristics at a certain temperature range.
• The medium can only be treated at a certain temperature.
• The medium carrier must be transportable or moveable due to a mobile supply station.

Application Examples:

• Compound machinery / hot glue, packaging, label machinery
• Surface protection / tar and painting machinery
• Food processing industry, fill machinery
• Foam machinery, PU-foaming, roof renewal, packaging machinery
• Epoxy sap machinery
• Washing benches, steam cleaner, pipe cleaning
• Fill tubing and silo tubes
• Tanker tubing
• Glass industry, for coating and glueing from thermo glass panels

Various Designs:

• Inner hose . . . . . . . . . .PTFE with stainless steelbraiding

                                                Single= T1, double=T2, triple=T3

• Fittings . . . . . . . . . . . . .Steel bichromate coated

                                                Stainless steel (see Fitting table page12)

• Outer Sheath . . . . . . . .PA corrugated

                                                PU spirally wound corrugated
                                                Polyamide braiding
                                                Galvanized steel braiding
                                                Stainless steel (AISI 303)

• End Cap . . . . . . . . . . .Silicone

                                               EPDM without silicone
                                               Plastic
                                               Metal

• Cable exit . . . . . . . . . .Lateral to the front

                                               Led back
                                               Front side
                                               Under end cap led back
                                               Lateral
                                               Combinations

• Glands . . . . . . . . . . . .Fixed glands

                                               Moveable glands

• Additional Cable . . . . .On customer’s request 0.5 up to 4mm2

                                               Max. 15 additional cables

• Plugs . . . . . . . . . . . . . .upon customer’s requirements
• Controller . . . . . . . . . . .ELTC-H-Controller

End Fitting RSL

Material: – Stainless Steel
– Steel Bichromate Coated

Applications:

• Industrial piping systems
• Heating systems
• Cooling systems
• Ventilation systems
• Chemical plants
• Petrochemical plants
• Food processing plants
• Pharmaceutical production plants
• Marine applications
• High corrosion environments
• High temperature applications
• Low temperature applications
• Vibrating environments
• Environments exposed to mechanical impacts
• Stainless steel pipe connections
• Steel pipe connections (bichromate coated)

End Fitting RSS

Material: – Stainless Steel
– Steel Bichromate Coated

Applications:

• Industrial piping systems
• Heating systems
• Cooling systems
• Ventilation systems
• Chemical plants
• Petrochemical plants
• Food processing plants
• Pharmaceutical production plants
• Marine applications
• High corrosion environments
• High temperature applications
• Low temperature applications
• Vibrating environments
• Environments exposed to mechanical impacts
• Stainless steel pipe connections
• Steel pipe connections (bichromate coated)

End Fitting DKR

Material: – Stainless Steel
– Steel Bichromate Coated

Applications:

• Hydraulic systems
• Pneumatic systems
• High-pressure fluid transfer
• Lubrication systems
• Cooling systems
• Fuel systems
• Chemical transfer systems
• Petrochemical plants
• Food processing plants
• Pharmaceutical production plants
• Marine applications
• Construction equipment
• Agricultural equipment
• Automotive industry
• Aerospace industry
• High corrosion environments
• High temperature applications
• Low temperature applications
• Vibrating environments
• Environments exposed to mechanical impacts
• Stainless steel pipe connections
• Steel pipe connections (bichromate coated)

End Fitting DKJ

Female Swivel Sealing Head 37° (UNF).

Applications:

• Hydraulic systems
• Pneumatic systems
• High-pressure fluid transfer
• Lubrication systems
• Cooling systems
• Fuel systems
• Chemical transfer systems
• Petrochemical plants
• Food processing plants
• Pharmaceutical production plants
• Marine applications
• Construction equipment
• Agricultural equipment
• Automotive industry
• Aerospace industry
• High corrosion environments
• High temperature applications
• Low temperature applications
• Vibrating environments
• Environments exposed to mechanical impacts
• Hydraulic systems requiring swivel connections
• Systems requiring UNF threaded connections

End Fitting AGR

Material: – Stainless Steel
– Steel Bichromate Coated

Applications:

• Hydraulic systems
• Pneumatic systems
• High-pressure fluid transfer
• Lubrication systems
• Cooling systems
• Fuel systems
• Chemical transfer systems
• Petrochemical plants
• Food processing plants
• Pharmaceutical production plants
• Marine applications
• Construction equipment
• Agricultural equipment
• Automotive industry
• Aerospace industry
• High corrosion environments
• High temperature applications
• Low temperature applications
• Vibrating environments
• Environments exposed to mechanical impacts
• Stainless steel pipe connections
• Steel pipe connections (bichromate coated)
