HEAT TRACE CONNECTION BOX

ELAK-R

This innovative junction box provides a lot of advantages. Due to the shape of the box, for instance, it is not necessary to strongly bend the inserted cable thereby avoiding cable damage. The unique snap fit permits rapid closing of the cover without needing a special tool. A safety lock, with appropriate tool included, prevents the cover from moving. Additional features permit the attachment of sign plates facilitating easy identification of heating circuits in complex systems.

Advantages:

• Rapid closing of the cover through snap fit, no tool required
• Increased mechanical safety through round shape
• Permits fixing of customer identification plates
• Up to 3 heating cables can be connected

Applications:

• Chemical & petrochemical industries
• Power stations
• Industrial plants with a need for frost protection or temperature maintenance

ELAK-RS

This innovative junction box provides a number of advantages. Thanks to the shape of the box, for instance, it is not necessary to strongly bend the inserted cable thereby avoiding cable damage. Due to the incorporated mounting bracket, there is no need to provide angle irons. This is especially advantageous to heat tracing on pipework because cable entry is directly put through the mounting bracket. Furthermore, fastening screws for heating lines and sensors are not required. The unique snap fit permits rapid closing of the cover without needing a special tool. A safety lock, with appropriate tool included, prevents the cover from moving. Additional features permitting the attachment of sign plates facilitate easy identification of heating circuits in complex systems

Advantages:

• Integrated mounting bracket
• Rapid closing of the cover through snap fit, no tool required
• Increased mechanical safety through round shape
• Permits fixing of customer identification plates
• Up to 3 heating cables can be connected

Applications:

• Industrial plants with a need for frost protection or temperature maintenance

El-Clic

No matter if you want to connect a self-regulating heating cable (types ELSR-N, -LS or –W) with the power supply, you need a Tee-splice, you want to supply two or three self-regulating heating cables with power, just connect two or three self-regulating heating cables to each other, with the innovative fast connector system El-Clic you have the perfect solution. One device covers all applications. You no longer need to keep different fast connectors on stock – El-Clic is “All in one”. You can realise remarkable cost-savings by optimized stock. With El-Clic you have enormous flexibility on site because unexpected situations are no longer a problem. With El-Clic, you always have the right power supply and connector on-hand. In the El-Clic P version the connector comes ready-made with extra long supply lead. The version El-Clic S is available as pure connector for up to three heating cables without supply lead. Connection and power termination of the heating cables can be done quick and easy, the only tools required are a screwdriver and a cutter. This time saving allows remarkable reduction of installation costs. El-Clic is designed without any losable small parts, so installation can be done faster and safe. A screw prevents accidental opening of the enclosure. Either wall mounting or on-pipe mounting can be done without need of additional supports or clamps. For on-pipe mounting you will find two temperature and UV resistant cable straps included. (Please have suitable screws in store for wall mounting.) Futhermore, El-Clic is designed compact and really a lightweight.

Advantages:

• Only one connection box for all applications
• Space-saving storage
• No losable small parts
• Compact design
• Low weigh
• Quick, safe and easy installation
• Highest flexibility on site
• Perfect for on-pipe-mounting due to integrated supporting feet
• No additional supports or clamps needed for wall mounting and on-pipe mounting
• Prevention of accidental opening
• Extra long supply lead

Application Areas:

• Industrial automation systems
• Machine manufacturing
• Electrical panels
• Lighting systems
• Heating and cooling systems
• Extruder Heating(Cable Connections)
• Hot press applications(Cable Connections)
• Transportation sector (trains, buses)
• Marine applications
• Power distribution systems
• Cable connections of electronic devices
• Control systems
• Sensor and actuator connections.

Ex-it-R

The innovative junction box ELAK-Ex-R with mounting bracket (Ex-it) is suitable for use in potentially explosive atmosphere in accordance with Ex-guidelines 94/9/CE (ATEX 95) and provides a number of advantages. Thanks to the shape of the box, for instance, it is not necessary to strongly bend the inserted cable thereby avoiding cable damage. Due to the incorporated mounting bracket, there is no need to provide angle irons. This is especially advantageous to heat tracing on piping because the cable can directly be introduced via the mounting bracket. Furthermore, fastening screws for heating lines and sensors are not required. A safety locking, with appropriate tool included, prevents the cover from moving. Additional features permitting the attachment of sign plates facilitate easy identification of heating circuits in complex systems.

Advantages:

• No static charge
• Rapid closing of the cover through snap fit, no tool required
• Increased mechanical safety through round shape
• Permits fixing of customer identification plates
• Up to 3 heating cables can be connected

Applications:

• Hazardous areas
• Chemical & petrochemical industries
• Power stations
• Industrial plants with a need for frost protection or temperature maintenance

ELAK-Ex-R

The innovative junction box ELAK-Ex-R is suitable for use in potentially explosive atmosphere in accordance with Ex-guidelines 94/9/CE (ATEX 95). Thanks to its exceptional shape it provides a number of advantages. Due to the form of the box, for instance, it is not necessary to strongly bend the inserted cable thereby avoiding cable damage. A safety lock, with appropriate tool included, prevents the cover from moving. Additional features permitting the attachment of sign plates facilitate easy identification of heating circuits in complex systems. Suited for wallmounting

Advantages:

• No static charge
• Rapid closing of the cover through snap fit, no tool required
• Increased mechanical safety through round shape
• Permits fixing of customer identification plates
• Up to 3 heating cables can be connected

Applications:

• Hazardous areas
• Chemical & petrochemical industries
• Power stations
• Industrial plants with a need for frost protection or temperature maintenance

ELAK-Ex-3

This junction box ELAK-Ex-3 in conventional design is suitable for use in potentially explosive atmosphere in accordance with Ex-guidelines 94/9/CE (ATEX 95). Moreover, the unit ELAK-Ex-3 covers a significantly wide range of ambient temperatures as shown on the data sheet. The junction box can be wall-mounted and is also available with stands for mounting on pipes

Advantages:

• Covers a wide range of temperatures
• Suited for mounting on pipes

Applications:

• Hazardous areas
• Chemical & petrochemical industries
• Power stations
• Industrial plants with a need for frost protection or temperature maintenance

ELVB-SR Ex

These connection kits for eltherm self-regulation heating cables have specially beendeveloped for use in hazardous areas, Ex e.

Advantages:

• Easy termination
• Time-saving

Applications:

• Pipe heating
• Frost protection for industrial plant
• Hazardous areas
• Chemical and petrochemical plants
• Oil and gas industry
• Container and tanks
• Food industry

ELAK-Ex-4.23

Suitable connection:

• 3 Trace heater ELK-MI /-MI-Twin, star connection
• 1 Power cable

The junction box ELAK-Ex-4.23 in conventional design is suitable for use in potentially explosive atmosphere in accordance with Ex-guidelines. It is easy to install and promises easy maintenance. The junction box can be wall-mounted and can also be installed on pipes with a mounting bracket or variable mounting bracket.

Application Areas:

• Oil and gas industry (refineries, platforms)
• Chemical industry (chemical plants)
• Mining
• Paint industry
• Flour and sugar factories
• High temperature furnaces
• Heat treatment plants
• Hazardous material storage
• Pipelines, valves and pumps
• Silos, containers and tanks
• Frost protection
• Temperature maintenance.

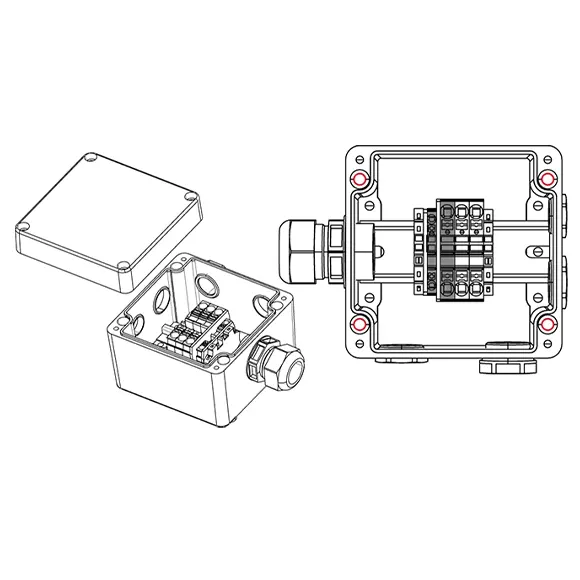

ELAK-Ex-4.21

Suitable connection:

• 1 Trace heater ELK-MI /-MI-Twin
• 1 Power cable

122 x 120 x 90 mm, polyester, IP66, 1 heating cable, 1 supply line. The junction box ELAK-Ex-4.21 in conventional design is suitable for use in potentially explosive atmosphere in accordance with Ex-guidelines. It is easy to install and promises easy maintenance. The junction box can be wall-mounted and can also be installed on pipes with a mounting bracket or variable mounting bracket.

Application Areas:

• Oil and gas industry (refineries, platforms)
• Chemical industry (chemical plants)
• Mining
• Paint industry
• Flour and sugar factories
• High temperature furnaces
• Heat treatment plants
• Hazardous material storage
• Extruder Heating (in hazardous areas)
• Hot press applications (in hazardous areas)

ELAK-Ex-4.22

Suitable connection:

• 2 Trace heater ELK-MI /-MI-Twin
• 1 Power cable

The junction box ELAK-Ex-4.22 in conventional design is suitable for use in potentially explosive atmosphere in accordance with Ex-guidelines. It is easy to install and promises easy maintenance. The junction box can be wall-mounted and can also be installed on pipes with a mounting bracket or variable mounting bracket.

Application Areas:

• Oil and gas industry (refineries, platforms)
• Chemical industry (chemical plants)
• Mining
• Paint industry
• Flour and sugar factories
• High temperature furnaces
• Heat treatment plants
• Hazardous material storage
• Extruder Heating (in hazardous areas)
• Hot press applications (in hazardous areas)
• Cable junction boxes (in hazardous areas)
• Heating cable connections (in hazardous areas)
• Sensor connections (in hazardous areas)

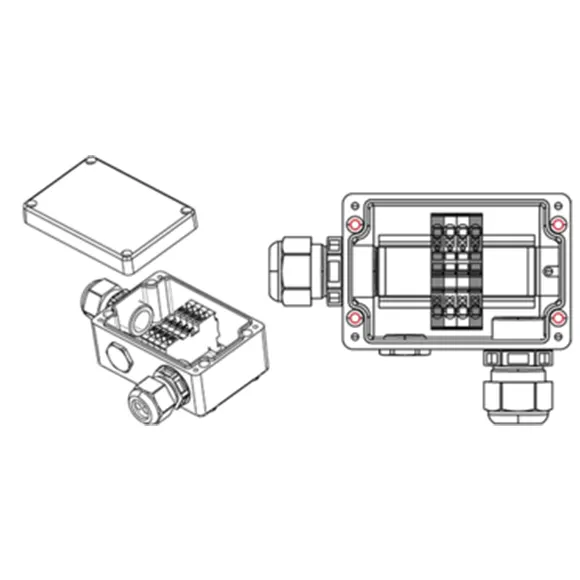

ELAK-Ex-2.00

Suitable connection:

• 1 Trace heater ELSR, ELK-AG, ELK-MI or ELK-MI Twin
• 1 Power cable

The junction box ELAK-Ex-2.00 in conventional design is suitable for use in potentially explosive atmosphere in accordance with Ex-guidelines. It is easy to install and promises easy maintenance. The junction box can be wall-mounted and can also be installed on pipes with a mounting bracket or variable mounting bracket.

Application Areas:

• Oil and gas industry (refineries, platforms)
• Chemical industry (chemical plants)
• Mining
• Paint industry
• Flour and sugar factories
• High temperature furnaces
• Heat treatment plants
• Hazardous material storage
• Extruder Heating (in hazardous areas)
• Hot press applications (in hazardous areas)
• Cable junction boxes (in hazardous areas)
• Heating cable connections (in hazardous areas)
• Sensor connections (in hazardous areas)
• Lighting systems (in hazardous areas)
• Distribution boxes (in hazardous areas)

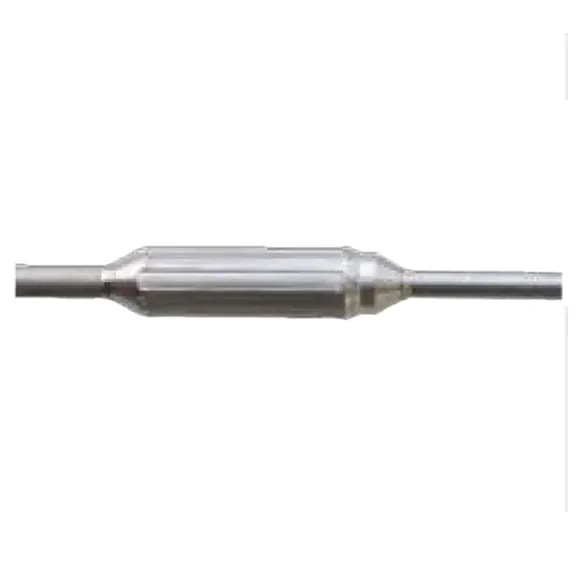

ELVB-MI-VA-S

Application Areas:

• Industrial furnaces and dryers
• Chemical processes
• Food processing
• Pharmaceutical production
• Power plants
• Metal processing
• Automotive industry
• Aerospace industry
• Nuclear power plants
• Extruder Heating
• Hot press applications
• High temperature pipelines
• Tank heating
